Near-Field Validation

This notebook validates miepython near-field electric and magnetic fields against precomputed references from scattnlay:

Project: scattnlay
Implementation: C++ (with Python bindings / CLI)
Scope: electromagnetic scattering and near fields for multilayered spheres

Reference arrays are generated by:

python docs/data/generate_scattnlay_reference_fields.py

and stored in docs/data/ as .npy files.

Data-loading policy in this notebook:

In JupyterLite (sys.platform == "emscripten"): load local staged files from data/.
Otherwise: load from GitHub raw URLs under https://raw.githubusercontent.com/scottprahl/miepython/main/docs/data/.

[1]:

%config InlineBackend.figure_format = 'retina'

import os
import sys
from io import BytesIO
from pathlib import Path
from urllib.request import urlopen
import numpy as np
import matplotlib.pyplot as plt

IS_JUPYTERLITE = sys.platform == "emscripten"

if IS_JUPYTERLITE:
    import piplite
    await piplite.install("scipy")         # required by miepython.field
    await piplite.install("miepython", deps=False)
    os.environ["MIEPYTHON_USE_JIT"] = "0"  # jupyterlite cannot use numba

from miepython.field import eh_near_cartesian

GITHUB_DATA_BASE = "https://raw.githubusercontent.com/scottprahl/miepython/main/docs/data"

Convention Alignment (scattnlay vs miepython)

To compare fields correctly, we align these conventions:

Coordinate units

scattnlay fieldnlay uses dimensionless positions k*r.
Stored reference grids in this repository are converted back to physical coordinates.

Absorption sign convention

miepython uses m = n - i k.
For this validation setup, absorbing scattnlay input is provided as positive imaginary part. The physical miepython case 1.5 - 0.1j is compared to scattnlay reference data generated with 1.5 + 0.1j.

Magnetic-field normalization

scattnlay returns H in physical E/H units.
miepython.field.eh_near_cartesian returns H normalized to incident E.
We scale scattnlay |H| by medium impedance: eta_env = eta0 / n_env, eta0 = 376.730313667.

[2]:

def _load_npy_from_url(url):
    with urlopen(url) as response:
        return np.load(BytesIO(response.read()))


def _load_case_from_local_dir(case_key, base):
    paths = {
        "X": base / f"scattnlay_{case_key}_X.npy",
        "Z": base / f"scattnlay_{case_key}_Z.npy",
        "E": base / f"scattnlay_{case_key}_E.npy",
        "H": base / f"scattnlay_{case_key}_H.npy",
    }
    missing = [str(path) for path in paths.values() if not path.exists()]
    if missing:
        msg = "Missing precomputed scattnlay files:\n" + "\n".join(missing)
        raise FileNotFoundError(msg)
    return np.load(paths["X"]), np.load(paths["Z"]), np.load(paths["E"]), np.load(paths["H"])


def load_scattnlay_case_from_npy(case_key, data_dir=None, github_base=GITHUB_DATA_BASE):
    if IS_JUPYTERLITE:
        base = Path("data") if data_dir is None else Path(data_dir)
        return _load_case_from_local_dir(case_key, base)

    if data_dir is not None:
        return _load_case_from_local_dir(case_key, Path(data_dir).resolve())

    files = {
        "X": f"scattnlay_{case_key}_X.npy",
        "Z": f"scattnlay_{case_key}_Z.npy",
        "E": f"scattnlay_{case_key}_E.npy",
        "H": f"scattnlay_{case_key}_H.npy",
    }
    loaded = {}
    for key, filename in files.items():
        url = f"{github_base}/{filename}"
        loaded[key] = _load_npy_from_url(url)

    return loaded["X"], loaded["Z"], loaded["E"], loaded["H"]


def summarize_errors(label, Eabs_s, Eabs_m, Habs_s, Habs_m):
    E_rel_err = np.abs(Eabs_m - Eabs_s) / np.maximum(Eabs_s, 1e-12)
    H_rel_err = np.abs(Habs_m - Habs_s) / np.maximum(Habs_s, 1e-12)

    print(f"[{label}] scattnlay max |E| = {np.max(Eabs_s):.6g}")
    print(f"[{label}] miepython max |E| = {np.max(Eabs_m):.6g}")
    print(f"[{label}] scattnlay max |H| (eta-scaled) = {np.max(Habs_s):.6g}")
    print(f"[{label}] miepython max |H| = {np.max(Habs_m):.6g}")
    print(f"[{label}] E relative error median/max = {np.median(E_rel_err):.3e} / {np.max(E_rel_err):.3e}")
    print(f"[{label}] H relative error median/max = {np.median(H_rel_err):.3e} / {np.max(H_rel_err):.3e}")

    return E_rel_err, H_rel_err


def plot_comparison(title, Xg, Zg, radius, Eabs_s, Eabs_m, E_rel_err, Habs_s, Habs_m, H_rel_err):
    fig, axes = plt.subplots(2, 3, figsize=(13, 8), constrained_layout=True)

    plots = [
        (Eabs_s, "scattnlay |E|", "turbo"),
        (Eabs_m, "miepython |E|", "turbo"),
        (E_rel_err, "|E| relative error", "viridis"),
        (Habs_s, "scattnlay |H| (eta-scaled)", "magma"),
        (Habs_m, "miepython |H|", "magma"),
        (H_rel_err, "|H| relative error", "viridis"),
    ]

    for ax, (arr, ttl, cmap) in zip(axes.flat, plots):
        im = ax.imshow(
            arr.T,
            origin="lower",
            extent=(Xg.min(), Xg.max(), Zg.min(), Zg.max()),
            cmap=cmap,
            aspect="equal",
        )
        circle_color = "w" if cmap in ("magma", "viridis") else "k"
        ax.add_patch(plt.Circle((0.0, 0.0), radius, fill=False, color=circle_color, lw=1.1))
        ax.set_title(ttl)
        ax.set_xlabel("x")
        ax.set_ylabel("z")
        fig.colorbar(im, ax=ax, fraction=0.046, pad=0.02)

    fig.suptitle(title, y=1.02)

Non-Absorbing Sphere Test

Parameters:

m = 1.5 + 0.0j
d = 2
n_env = 1
lambda0 = 1

[3]:

# Shared constants
n_env = 1.0
d_sphere = 2.0
radius = d_sphere / 2.0
lambda0 = 1.0
eta0 = 376.730313667
eta_env = eta0 / n_env

# scattnlay reference from .npy
Xg, Zg, E_s, H_s = load_scattnlay_case_from_npy("nonabs")

# miepython evaluation on the exact same grid
E_m, H_m = eh_near_cartesian(
    lambda0,
    d_sphere,
    1.5 + 0.0j,
    n_env,
    Xg,
    np.zeros_like(Xg),
    Zg,
    include_incident=True,
)

Eabs_s = np.sqrt(np.sum(np.abs(E_s) ** 2, axis=0))
Habs_s_raw = np.sqrt(np.sum(np.abs(H_s) ** 2, axis=0))
Habs_s = eta_env * Habs_s_raw

Eabs_m = np.sqrt(np.sum(np.abs(E_m) ** 2, axis=0))
Habs_m = np.sqrt(np.sum(np.abs(H_m) ** 2, axis=0))

E_rel_err, H_rel_err = summarize_errors("Non-absorbing", Eabs_s, Eabs_m, Habs_s, Habs_m)

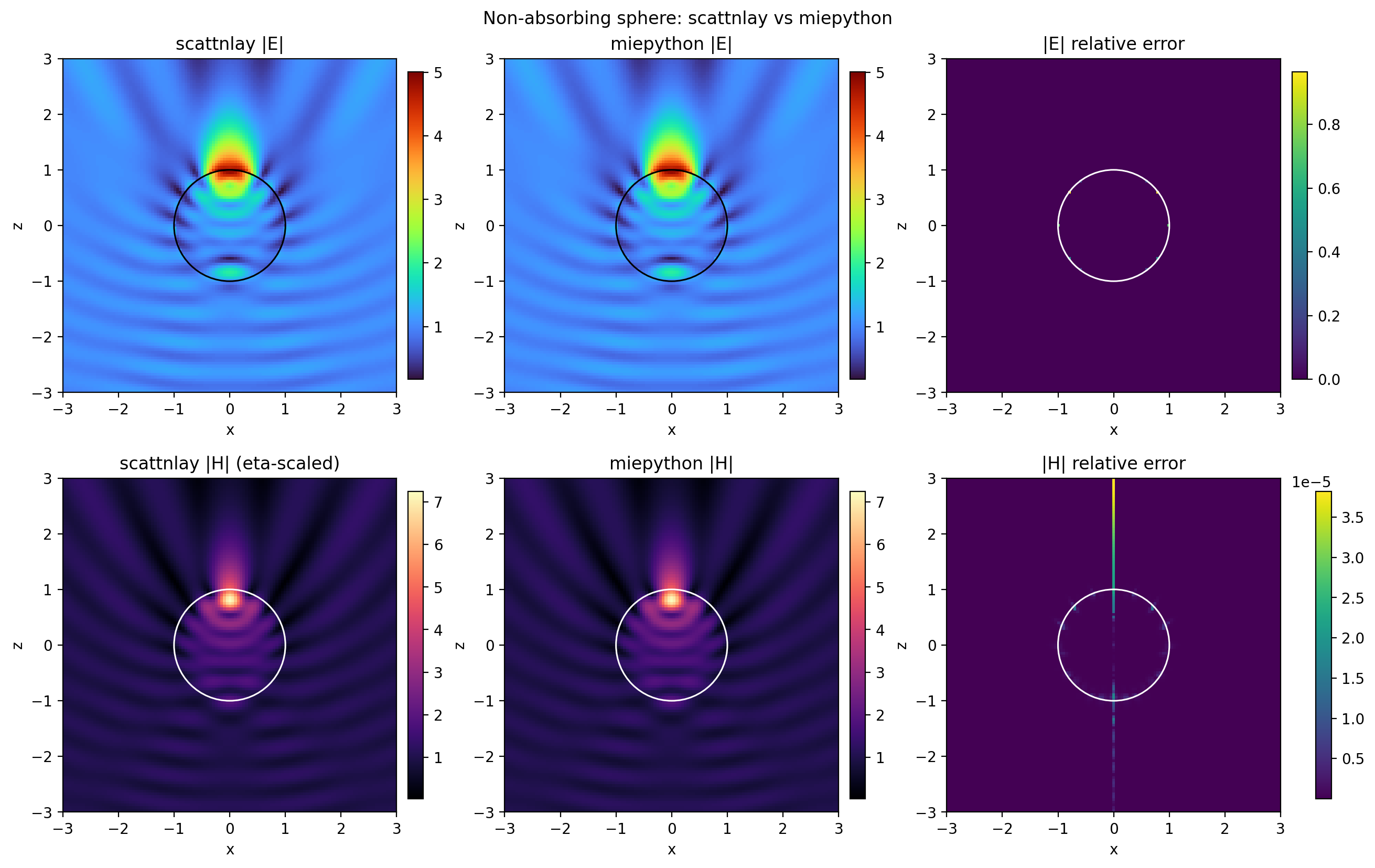

plot_comparison(
    "Non-absorbing sphere: scattnlay vs miepython",
    Xg,
    Zg,
    radius,
    Eabs_s,
    Eabs_m,
    E_rel_err,
    Habs_s,
    Habs_m,
    H_rel_err,
)

[Non-absorbing] scattnlay max |E| = 5.00558
[Non-absorbing] miepython max |E| = 5.00558
[Non-absorbing] scattnlay max |H| (eta-scaled) = 7.25048
[Non-absorbing] miepython max |H| = 7.25036
[Non-absorbing] E relative error median/max = 1.063e-11 / 9.649e-01
[Non-absorbing] H relative error median/max = 5.494e-10 / 3.820e-05

Absorbing Sphere Test

Physical parameters:

miepython sphere index: 1.5 - 0.1j
d = 2
n_env = 1
lambda0 = 1

Sign mapping used in this notebook:

scattnlay reference arrays loaded from case abs were generated with 1.5 + 0.1j
miepython is evaluated using the physical convention 1.5 - 0.1j

[4]:

# scattnlay reference from .npy (generated with scattnlay input m=1.5+0.1j)
Xg2, Zg2, E_s2, H_s2 = load_scattnlay_case_from_npy("abs")

# miepython physical absorbing convention m = 1.5 - 0.1j
E_m2, H_m2 = eh_near_cartesian(
    lambda0,
    d_sphere,
    1.5 - 0.1j,
    n_env,
    Xg2,
    np.zeros_like(Xg2),
    Zg2,
    include_incident=True,
)

Eabs_s2 = np.sqrt(np.sum(np.abs(E_s2) ** 2, axis=0))
Habs_s2_raw = np.sqrt(np.sum(np.abs(H_s2) ** 2, axis=0))
Habs_s2 = eta_env * Habs_s2_raw

Eabs_m2 = np.sqrt(np.sum(np.abs(E_m2) ** 2, axis=0))
Habs_m2 = np.sqrt(np.sum(np.abs(H_m2) ** 2, axis=0))

E_rel_err2, H_rel_err2 = summarize_errors("Absorbing", Eabs_s2, Eabs_m2, Habs_s2, Habs_m2)

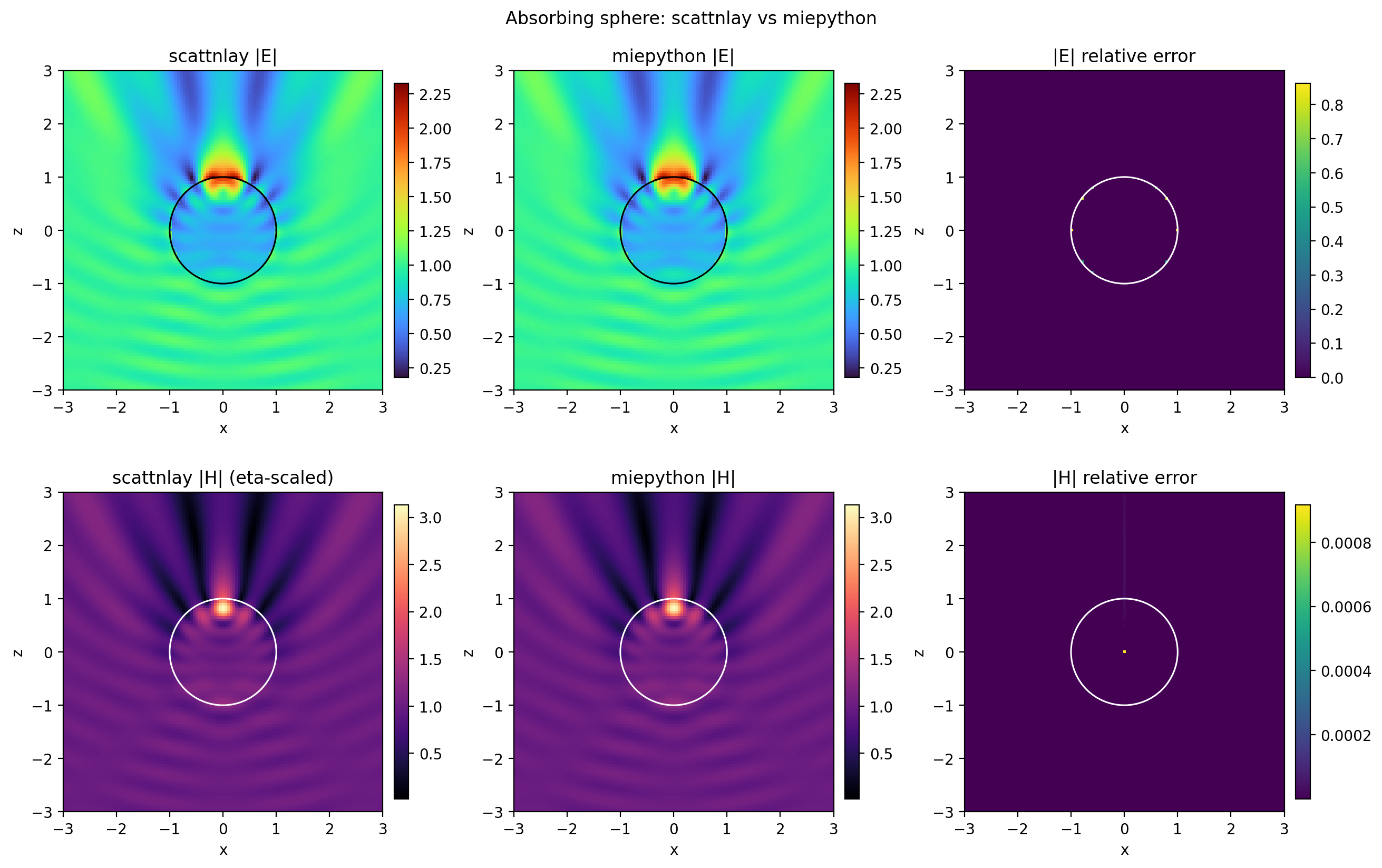

plot_comparison(
    "Absorbing sphere: scattnlay vs miepython",
    Xg2,
    Zg2,
    radius,
    Eabs_s2,
    Eabs_m2,
    E_rel_err2,
    Habs_s2,
    Habs_m2,
    H_rel_err2,
)

[Absorbing] scattnlay max |E| = 2.32745
[Absorbing] miepython max |E| = 2.32745
[Absorbing] scattnlay max |H| (eta-scaled) = 3.13324
[Absorbing] miepython max |H| = 3.13317
[Absorbing] E relative error median/max = 1.199e-11 / 8.628e-01
[Absorbing] H relative error median/max = 5.497e-10 / 9.166e-04

[ ]:
