Boundary Conditions at a Spherical Interface

Maxwell’s equations require interface continuity conditions (assuming no free surface charge/current):

\[\hat{n} \times (\mathbf{E}_{\mathrm{out}} - \mathbf{E}_{\mathrm{in}})=0, \qquad \hat{n} \cdot (\mathbf{D}_{\mathrm{out}} - \mathbf{D}_{\mathrm{in}})=0,\]

\[\hat{n} \times (\mathbf{H}_{\mathrm{out}} - \mathbf{H}_{\mathrm{in}})=0, \qquad \hat{n} \cdot (\mathbf{B}_{\mathrm{out}} - \mathbf{B}_{\mathrm{in}})=0.\]

For a sphere, these map to continuity of:

Tangential electric field: \(E_\theta\), \(E_\phi\)
Normal electric flux density: \(D_r\)
Tangential magnetic field: \(H_\theta\), \(H_\phi\)
Normal magnetic flux density: \(B_r\)

This notebook sweeps radius from \(r=0\) to \(r=d\) and plots those six quantities across the boundary at \(r=d/2\).

Base cases in this notebook:

\(n_\mathrm{sphere}=1.5\), \(n_\mathrm{env}=1.0\), \(x=2\)
\(n_\mathrm{sphere}=1.5\), \(n_\mathrm{env}=1.3\), \(x=2\)
\(n_\mathrm{sphere}=1.5-0.1j\), \(n_\mathrm{env}=1.0\), \(x=2\)

Additional stress cases implemented

In addition to the three base cases, this notebook now executes:

Index-matched baseline: \(n_\mathrm{sphere}=n_\mathrm{env}=1.3\) (minimal scattering).
High-contrast dielectric: \(n_\mathrm{sphere}=2.5\), \(n_\mathrm{env}=1.0\), \(x=2\).
Rayleigh regime: \(x=0.3\).
Multimode regime: \(x=8\).
Angular edge checks: \(\theta=0.2^\circ\) and \(\theta=179.8^\circ\).

[1]:

%config InlineBackend.figure_format = 'retina'

import os
import sys
import numpy as np
import matplotlib.pyplot as plt

if sys.platform == "emscripten":
    import piplite

    await piplite.install("miepython", deps=False)
    os.environ["MIEPYTHON_USE_JIT"] = "0"  # jupyterlite cannot use numba

import miepython as mie
from miepython.field import eh_near

Definitions and conventions

Size parameter: \(x=\pi d n_\mathrm{env}/\lambda_0\) (held fixed at 2 in all cases).
Sphere boundary is at \(a=d/2\).
For the internal medium, this notebook uses the same convention as the tests: \(\epsilon_\mathrm{in}=\left(\overline{n_\mathrm{sphere}}\right)^2\).
For the surrounding medium: \(\epsilon_\mathrm{out}=n_\mathrm{env}^2\).
Magnetic permeability is fixed to \(\mu_r=1\) for both media.
Reported relative jump values use one-sided linear extrapolation to estimate the boundary limits from inside and outside before differencing.

[2]:

def _boundary_jump(values, r, boundary):
    left = np.where(r < boundary)[0]
    right = np.where(r > boundary)[0]

    if len(left) < 2 or len(right) < 2:
        raise ValueError("Need at least two points on each side of boundary to estimate one-sided limits.")

    i1, i2 = left[-2], left[-1]
    j1, j2 = right[0], right[1]

    x1, x2 = r[i1], r[i2]
    y1, y2 = values[i1], values[i2]
    y_in = y1 + (boundary - x1) * (y2 - y1) / (x2 - x1)

    x3, x4 = r[j1], r[j2]
    y3, y4 = values[j1], values[j2]
    y_out = y3 + (boundary - x3) * (y4 - y3) / (x4 - x3)

    scale = max(abs(y_in), abs(y_out), 1e-15)
    rel_jump = abs(y_out - y_in) / scale
    return rel_jump


def compute_case(n_sphere, n_env, x=2.0, d_sphere=1.0, theta_deg=70.0, phi_deg=37.0, npts=3001):
    theta = np.radians(theta_deg)
    phi = np.radians(phi_deg)
    radius = d_sphere / 2.0

    # Keep x fixed across cases.
    lambda0 = np.pi * d_sphere * n_env / x

    # Reuse coefficients for speed and consistent inside/outside evaluation.
    m_rel = n_sphere / n_env
    abcd = np.array(mie.coefficients(m_rel, x, internal=True))

    r = np.linspace(0.0, d_sphere, npts)
    E, H = eh_near(lambda0, d_sphere, n_sphere, n_env, r, theta, phi, include_incident=True, abcd=abcd)

    inside = r < radius
    eps_in = np.conjugate(n_sphere) ** 2
    eps_out = n_env**2

    D_r = np.where(inside, eps_in * E[0], eps_out * E[0])

    # mu_r = 1, so B_r is proportional to H_r; the proportional constant does not
    # affect continuity across the interface.
    B_r = H[0]

    quantities = {
        "E_theta": E[1],
        "E_phi": E[2],
        "D_r": D_r,
        "H_theta": H[1],
        "H_phi": H[2],
        "B_r": B_r,
    }

    jumps = {name: _boundary_jump(values, r, radius) for name, values in quantities.items()}

    return {
        "r": r,
        "d": d_sphere,
        "a": radius,
        "lambda0": lambda0,
        "theta_deg": theta_deg,
        "phi_deg": phi_deg,
        "n_sphere": n_sphere,
        "n_env": n_env,
        "x": x,
        "quantities": quantities,
        "jumps": jumps,
    }


def plot_case(case, figsize=(14, 8)):
    r = case["r"]
    d_sphere = case["d"]
    a = case["a"]

    fig, axes = plt.subplots(2, 3, figsize=figsize, sharex=True)
    fig.suptitle(
        (
            f"{case['label']} [{case['group']}]: n_sphere={case['n_sphere']}, n_env={case['n_env']}, "
            f"x={case['x']}, theta={case['theta_deg']:.1f} deg"
        ),
        y=1.02,
    )

    names = ["E_theta", "E_phi", "D_r", "H_theta", "H_phi", "B_r"]
    for ax, name in zip(axes.flat, names):
        values = case["quantities"][name]
        ax.plot(r / d_sphere, values.real, label="Re", lw=1.8)
        ax.plot(r / d_sphere, values.imag, "--", label="Im", lw=1.4)
        ax.axvline(a / d_sphere, color="k", lw=1.0, alpha=0.35)
        ax.set_title(f"{name} (relative jump: {case['jumps'][name]:.2e})")
        ax.grid(alpha=0.25)

    axes[0, 0].legend(loc="best", fontsize=9)

    for ax in axes[1, :]:
        ax.set_xlabel("r / d")

    axes[0, 0].set_ylabel("Field value")
    axes[1, 0].set_ylabel("Field value")

    fig.tight_layout()
    return fig

[3]:

base_specs = [
    {"group": "Base", "label": "Case 1", "n_sphere": 1.5 + 0.0j, "n_env": 1.0, "x": 2.0},
    {"group": "Base", "label": "Case 2", "n_sphere": 1.5 + 0.0j, "n_env": 1.3, "x": 2.0},
    {"group": "Base", "label": "Case 3", "n_sphere": 1.5 - 0.1j, "n_env": 1.0, "x": 2.0},
]

stress_specs = [
    {
        "group": "Stress",
        "label": "Index-matched baseline",
        "n_sphere": 1.3 + 0.0j,
        "n_env": 1.3,
        "x": 2.0,
    },
    {
        "group": "Stress",
        "label": "High-contrast dielectric",
        "n_sphere": 2.5 + 0.0j,
        "n_env": 1.0,
        "x": 2.0,
    },
    {
        "group": "Stress",
        "label": "Rayleigh regime",
        "n_sphere": 1.5 + 0.0j,
        "n_env": 1.0,
        "x": 0.3,
    },
    {
        "group": "Stress",
        "label": "Multimode regime",
        "n_sphere": 1.5 + 0.0j,
        "n_env": 1.0,
        "x": 8.0,
    },
    {
        "group": "Stress",
        "label": "Near-forward angle",
        "n_sphere": 1.5 + 0.0j,
        "n_env": 1.0,
        "x": 2.0,
        "theta_deg": 0.2,
    },
    {
        "group": "Stress",
        "label": "Near-backward angle",
        "n_sphere": 1.5 + 0.0j,
        "n_env": 1.0,
        "x": 2.0,
        "theta_deg": 179.8,
    },
]

all_specs = base_specs + stress_specs

results = []
for spec in all_specs:
    case = compute_case(
        n_sphere=spec["n_sphere"],
        n_env=spec["n_env"],
        x=spec.get("x", 2.0),
        theta_deg=spec.get("theta_deg", 70.0),
        phi_deg=spec.get("phi_deg", 37.0),
        npts=spec.get("npts", 3001),
    )
    case["label"] = spec["label"]
    case["group"] = spec["group"]
    results.append(case)

    plot_case(case)
    plt.show()

[4]:

names = ["E_theta", "E_phi", "D_r", "H_theta", "H_phi", "B_r"]

for case in results:
    print(
        f"\n[{case['group']}] {case['label']}: "
        f"n_sphere={case['n_sphere']}, n_env={case['n_env']}, "
        f"x={case['x']}, theta={case['theta_deg']:.1f} deg, "
        f"lambda0={case['lambda0']:.6f}"
    )
    for name in names:
        print(f"  {name:8s} relative jump near r=d/2: {case['jumps'][name]:.3e}")
    max_jump = max(case["jumps"].values())
    print(f"  {'max_jump':8s} relative jump near r=d/2: {max_jump:.3e}")

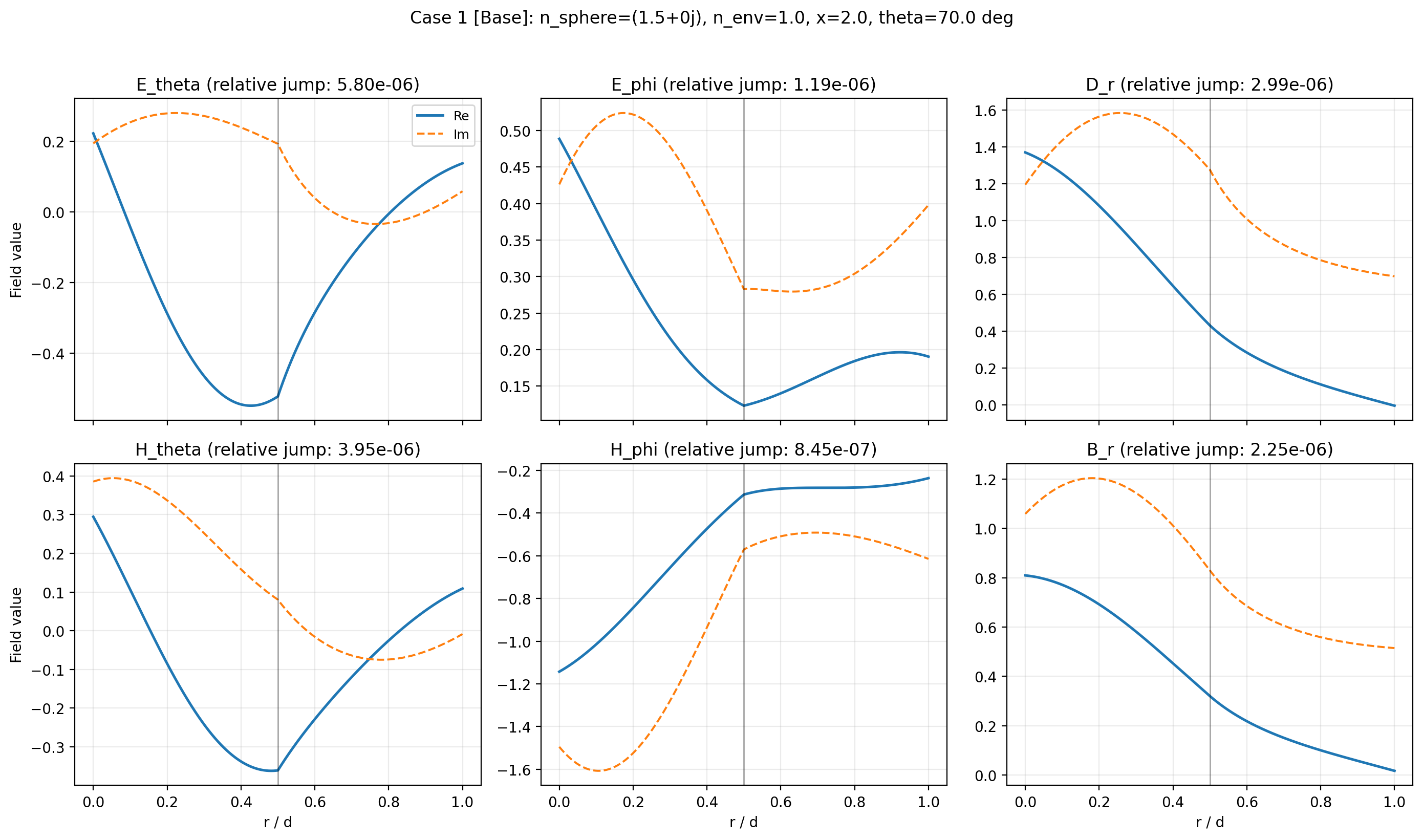

[Base] Case 1: n_sphere=(1.5+0j), n_env=1.0, x=2.0, theta=70.0 deg, lambda0=1.570796
  E_theta  relative jump near r=d/2: 5.800e-06
  E_phi    relative jump near r=d/2: 1.188e-06
  D_r      relative jump near r=d/2: 2.990e-06
  H_theta  relative jump near r=d/2: 3.951e-06
  H_phi    relative jump near r=d/2: 8.450e-07
  B_r      relative jump near r=d/2: 2.253e-06
  max_jump relative jump near r=d/2: 5.800e-06

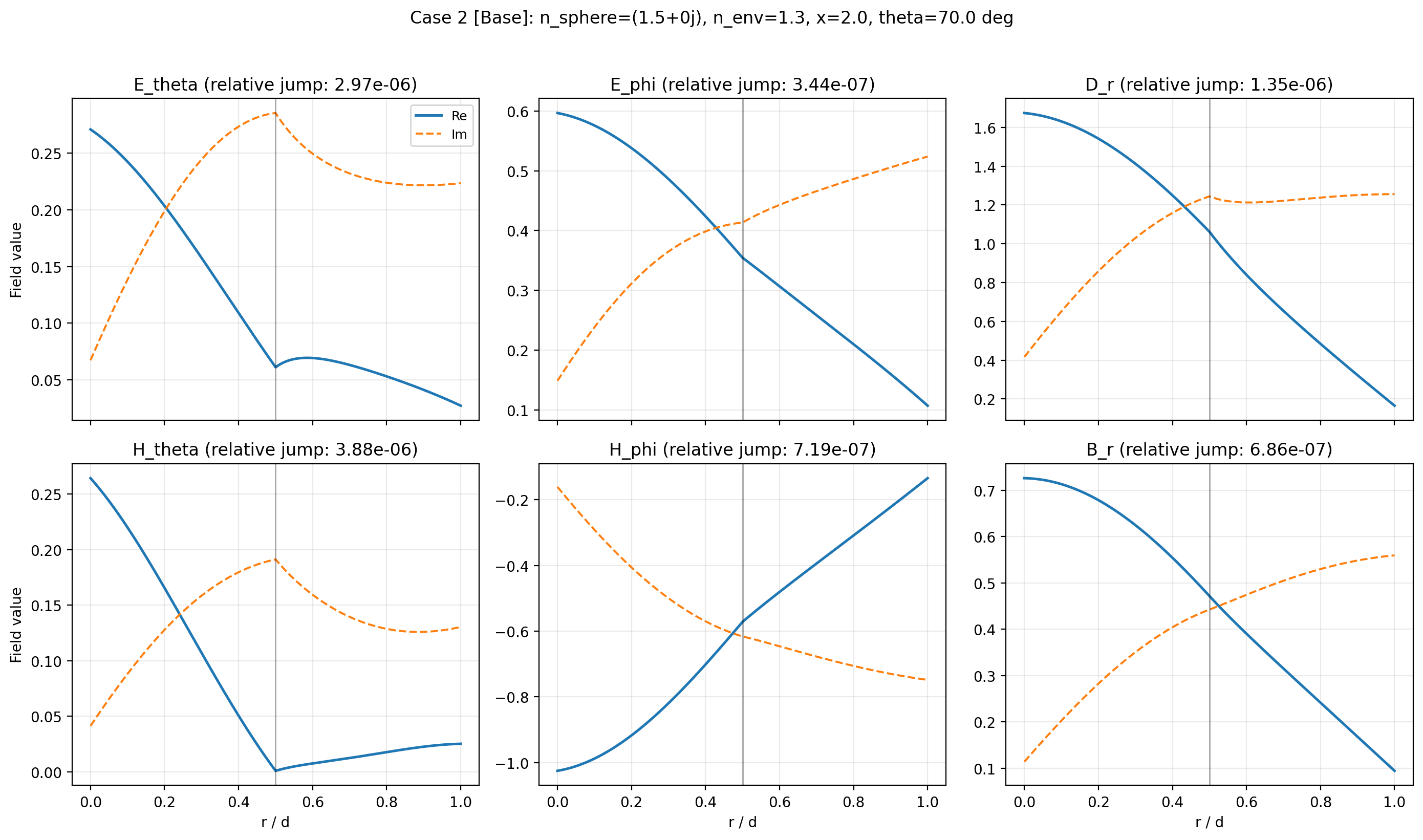

[Base] Case 2: n_sphere=(1.5+0j), n_env=1.3, x=2.0, theta=70.0 deg, lambda0=2.042035
  E_theta  relative jump near r=d/2: 2.968e-06
  E_phi    relative jump near r=d/2: 3.437e-07
  D_r      relative jump near r=d/2: 1.354e-06
  H_theta  relative jump near r=d/2: 3.878e-06
  H_phi    relative jump near r=d/2: 7.192e-07
  B_r      relative jump near r=d/2: 6.856e-07
  max_jump relative jump near r=d/2: 3.878e-06

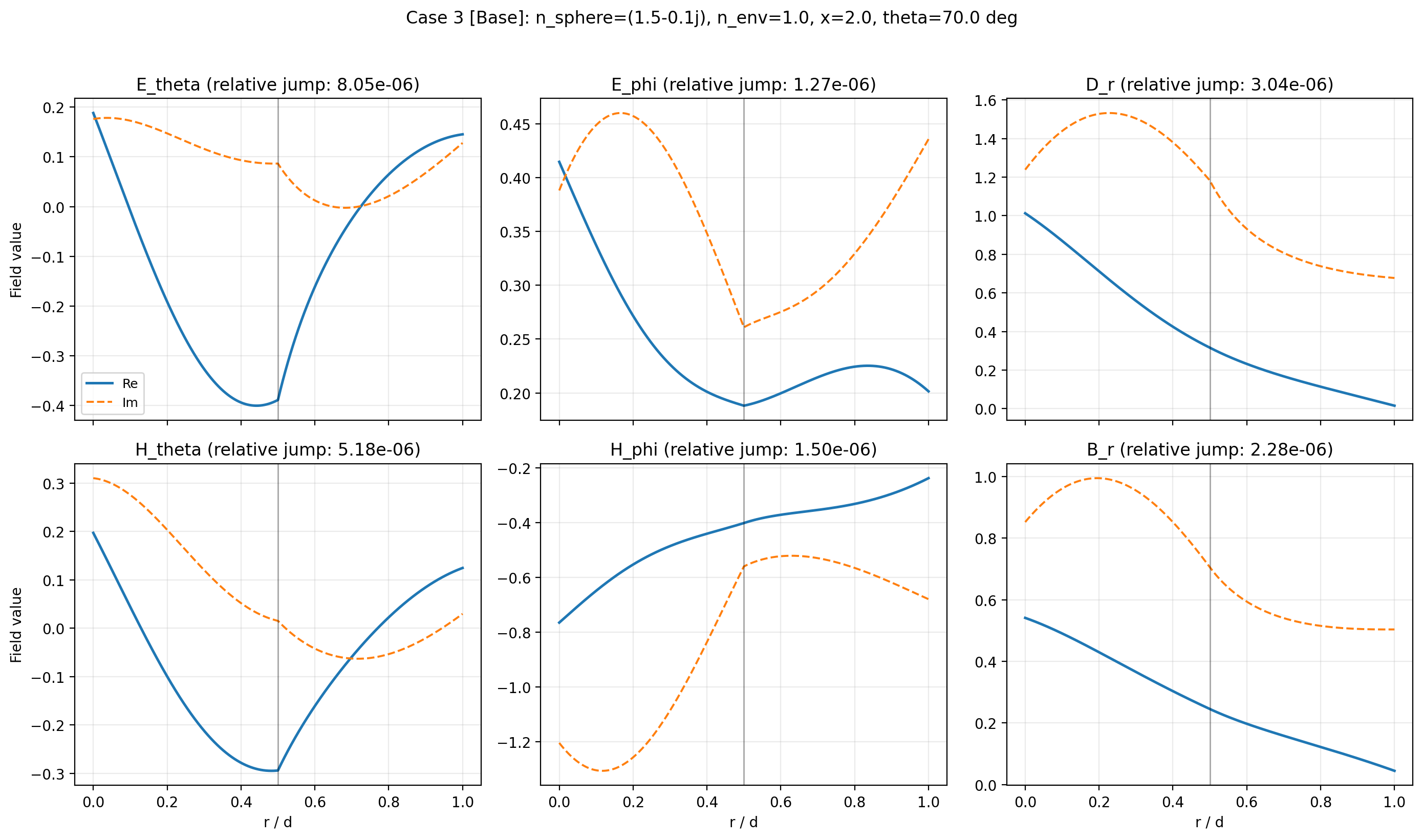

[Base] Case 3: n_sphere=(1.5-0.1j), n_env=1.0, x=2.0, theta=70.0 deg, lambda0=1.570796
  E_theta  relative jump near r=d/2: 8.051e-06
  E_phi    relative jump near r=d/2: 1.270e-06
  D_r      relative jump near r=d/2: 3.043e-06
  H_theta  relative jump near r=d/2: 5.176e-06
  H_phi    relative jump near r=d/2: 1.503e-06
  B_r      relative jump near r=d/2: 2.280e-06
  max_jump relative jump near r=d/2: 8.051e-06

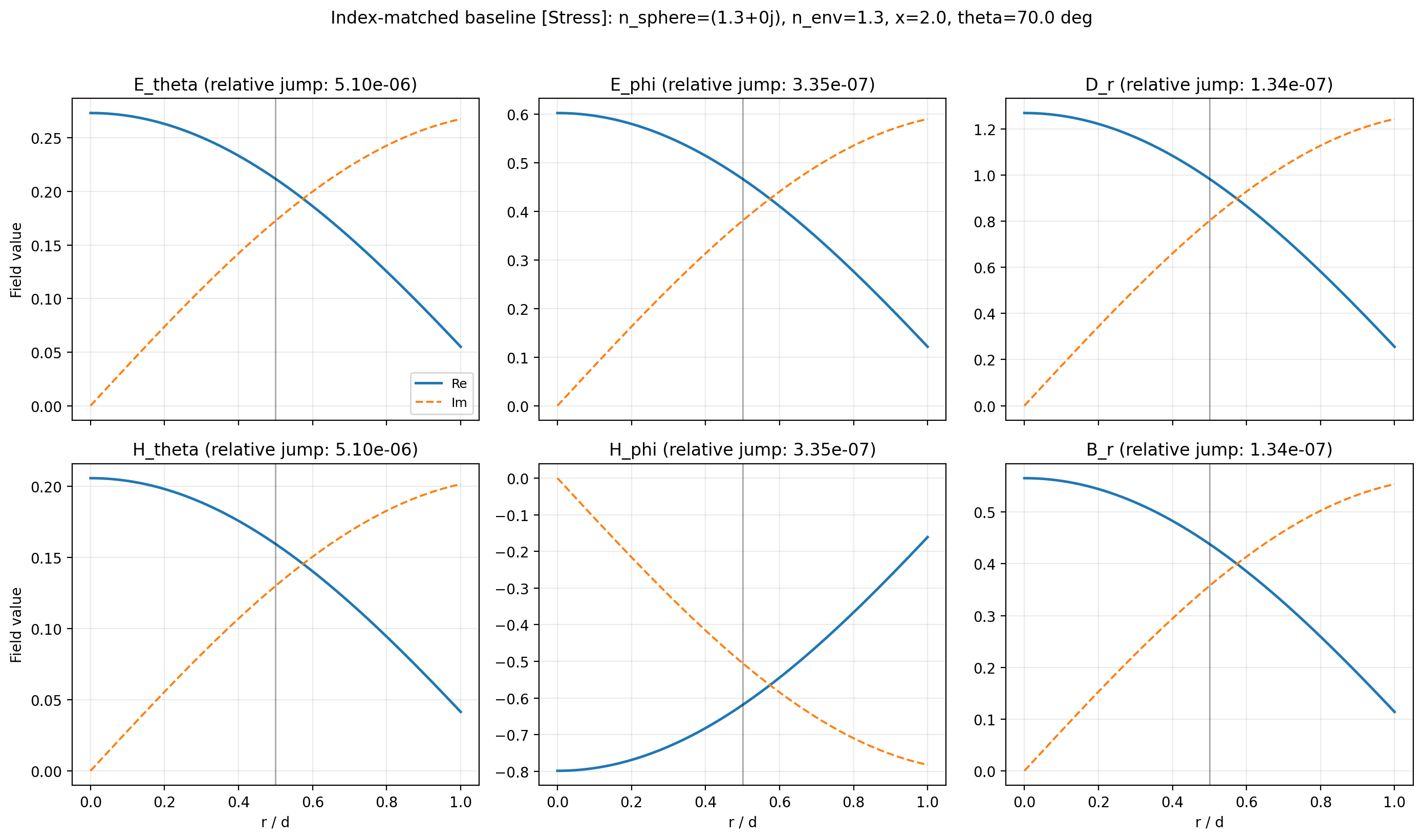

[Stress] Index-matched baseline: n_sphere=(1.3+0j), n_env=1.3, x=2.0, theta=70.0 deg, lambda0=2.042035
  E_theta  relative jump near r=d/2: 5.103e-06
  E_phi    relative jump near r=d/2: 3.346e-07
  D_r      relative jump near r=d/2: 1.345e-07
  H_theta  relative jump near r=d/2: 5.103e-06
  H_phi    relative jump near r=d/2: 3.346e-07
  B_r      relative jump near r=d/2: 1.345e-07
  max_jump relative jump near r=d/2: 5.103e-06

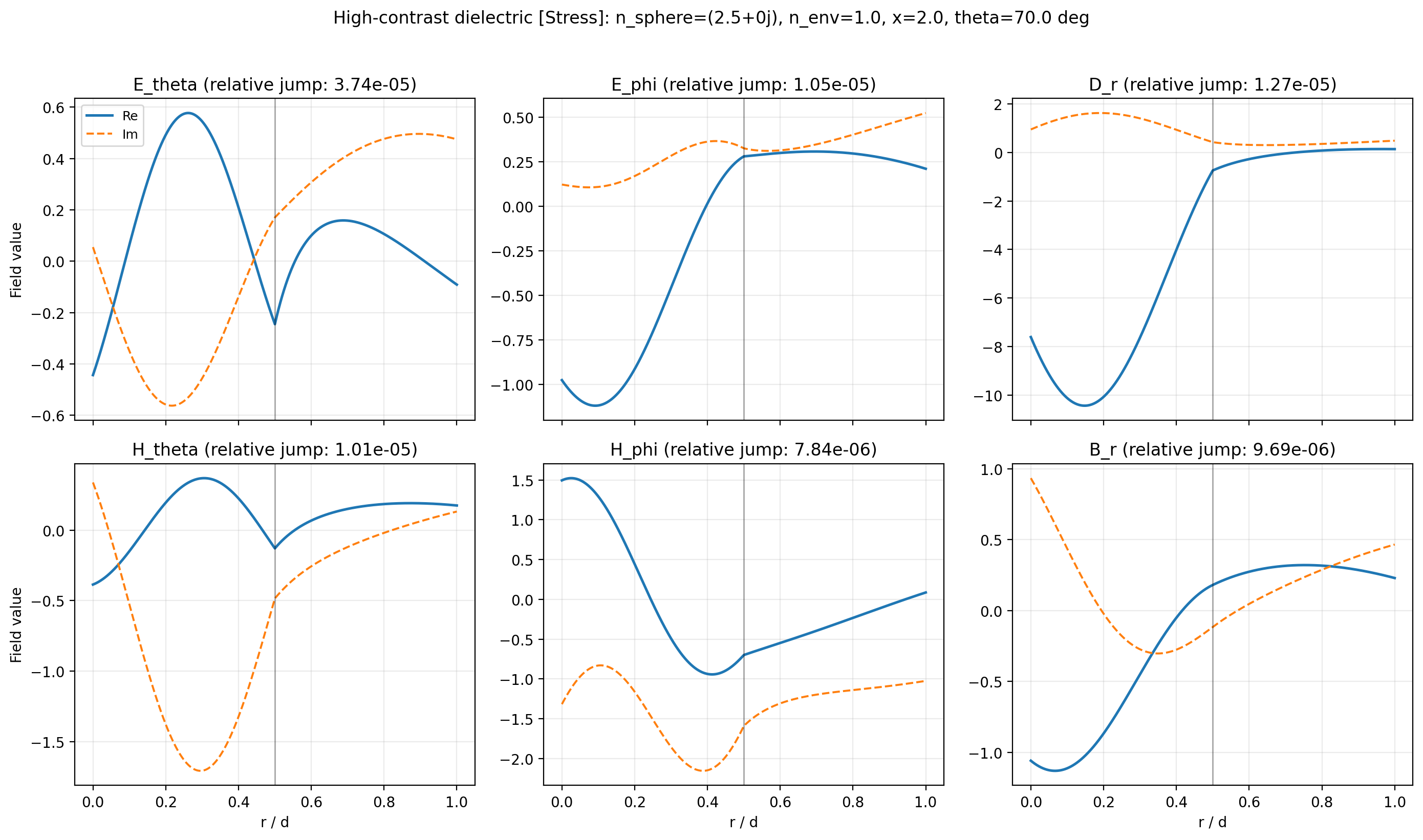

[Stress] High-contrast dielectric: n_sphere=(2.5+0j), n_env=1.0, x=2.0, theta=70.0 deg, lambda0=1.570796
  E_theta  relative jump near r=d/2: 3.744e-05
  E_phi    relative jump near r=d/2: 1.052e-05
  D_r      relative jump near r=d/2: 1.267e-05
  H_theta  relative jump near r=d/2: 1.012e-05
  H_phi    relative jump near r=d/2: 7.843e-06
  B_r      relative jump near r=d/2: 9.685e-06
  max_jump relative jump near r=d/2: 3.744e-05

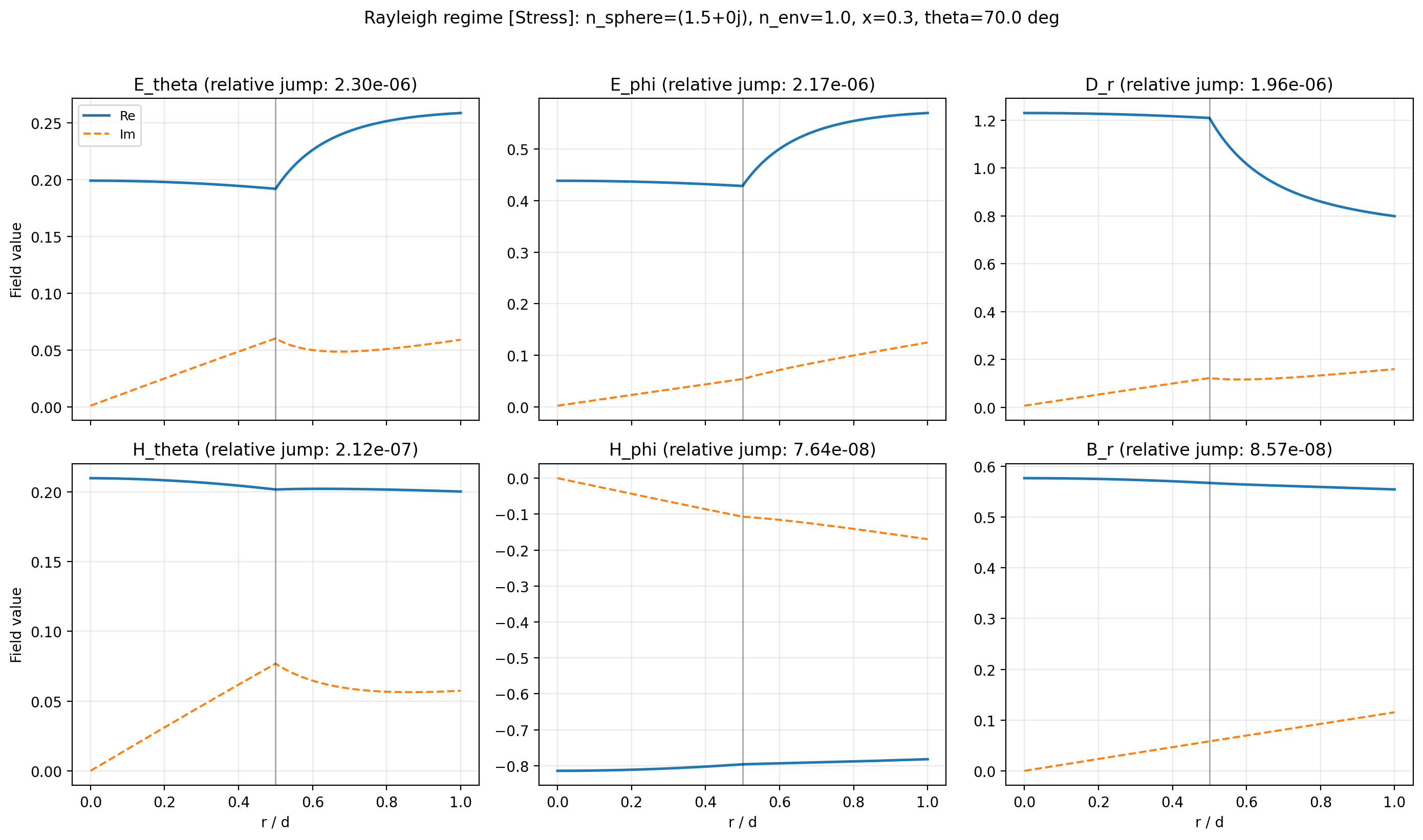

[Stress] Rayleigh regime: n_sphere=(1.5+0j), n_env=1.0, x=0.3, theta=70.0 deg, lambda0=10.471976
  E_theta  relative jump near r=d/2: 2.299e-06
  E_phi    relative jump near r=d/2: 2.167e-06
  D_r      relative jump near r=d/2: 1.957e-06
  H_theta  relative jump near r=d/2: 2.122e-07
  H_phi    relative jump near r=d/2: 7.644e-08
  B_r      relative jump near r=d/2: 8.570e-08
  max_jump relative jump near r=d/2: 2.299e-06

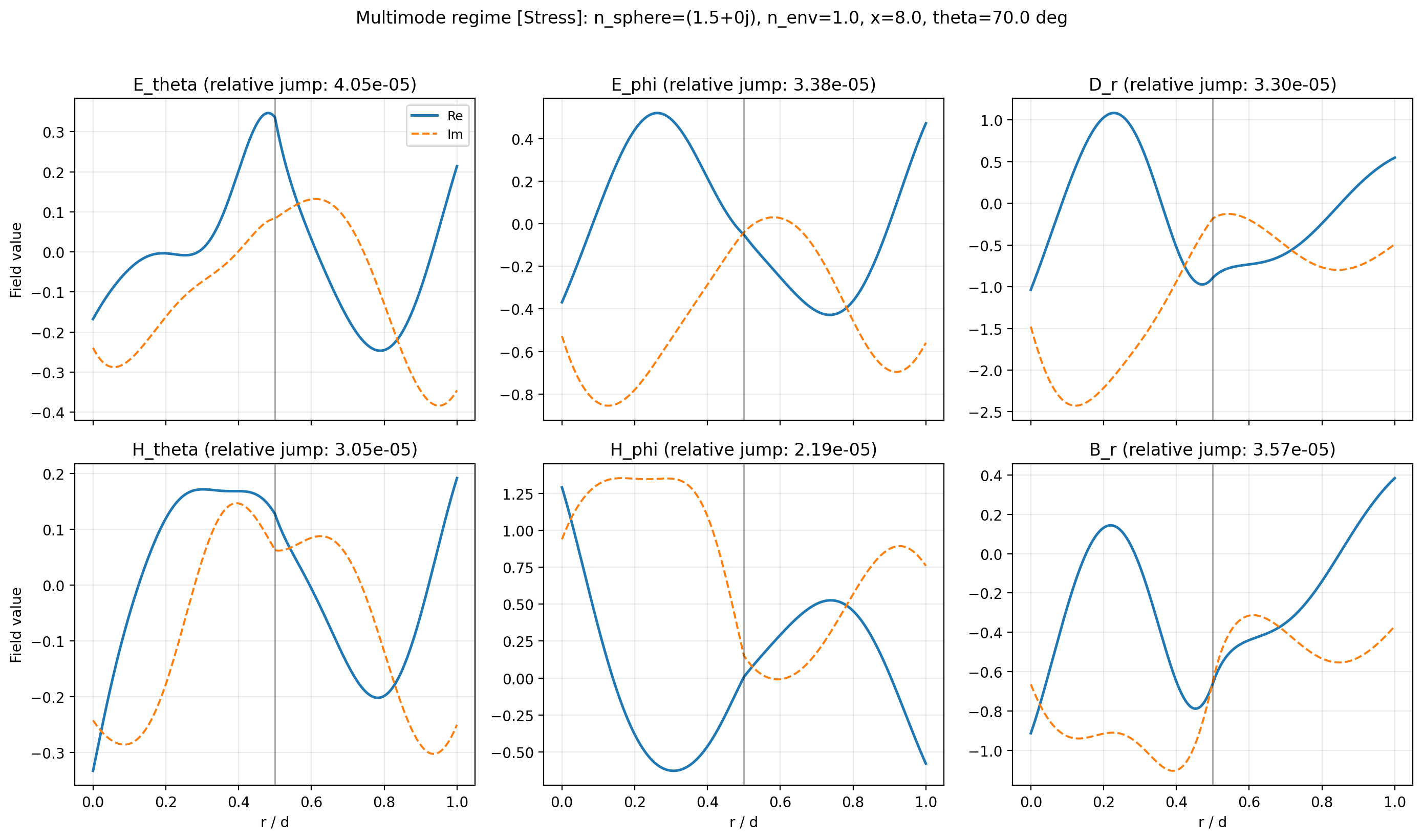

[Stress] Multimode regime: n_sphere=(1.5+0j), n_env=1.0, x=8.0, theta=70.0 deg, lambda0=0.392699
  E_theta  relative jump near r=d/2: 4.052e-05
  E_phi    relative jump near r=d/2: 3.382e-05
  D_r      relative jump near r=d/2: 3.297e-05
  H_theta  relative jump near r=d/2: 3.049e-05
  H_phi    relative jump near r=d/2: 2.186e-05
  B_r      relative jump near r=d/2: 3.569e-05
  max_jump relative jump near r=d/2: 4.052e-05

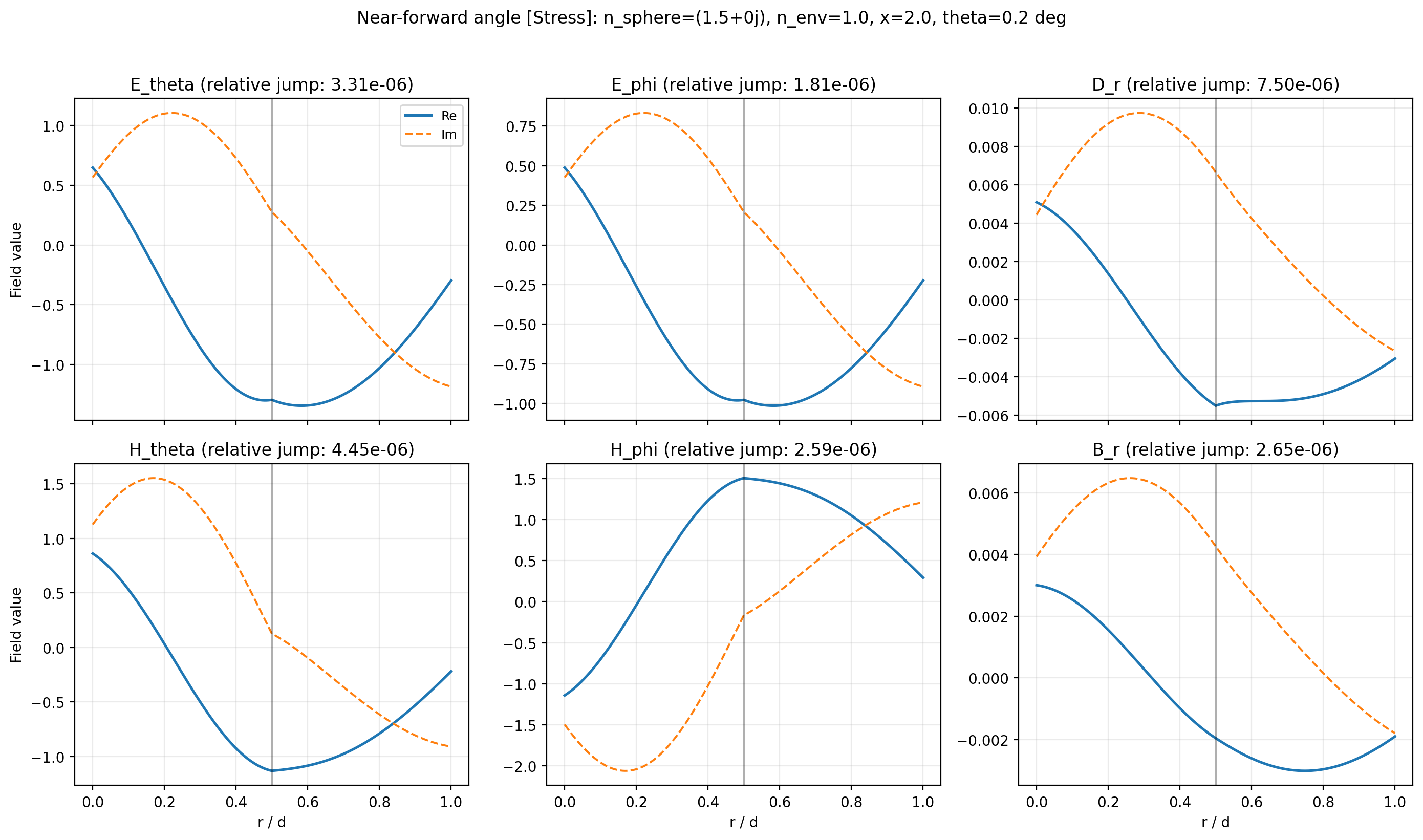

[Stress] Near-forward angle: n_sphere=(1.5+0j), n_env=1.0, x=2.0, theta=0.2 deg, lambda0=1.570796
  E_theta  relative jump near r=d/2: 3.314e-06
  E_phi    relative jump near r=d/2: 1.809e-06
  D_r      relative jump near r=d/2: 7.497e-06
  H_theta  relative jump near r=d/2: 4.451e-06
  H_phi    relative jump near r=d/2: 2.589e-06
  B_r      relative jump near r=d/2: 2.646e-06
  max_jump relative jump near r=d/2: 7.497e-06

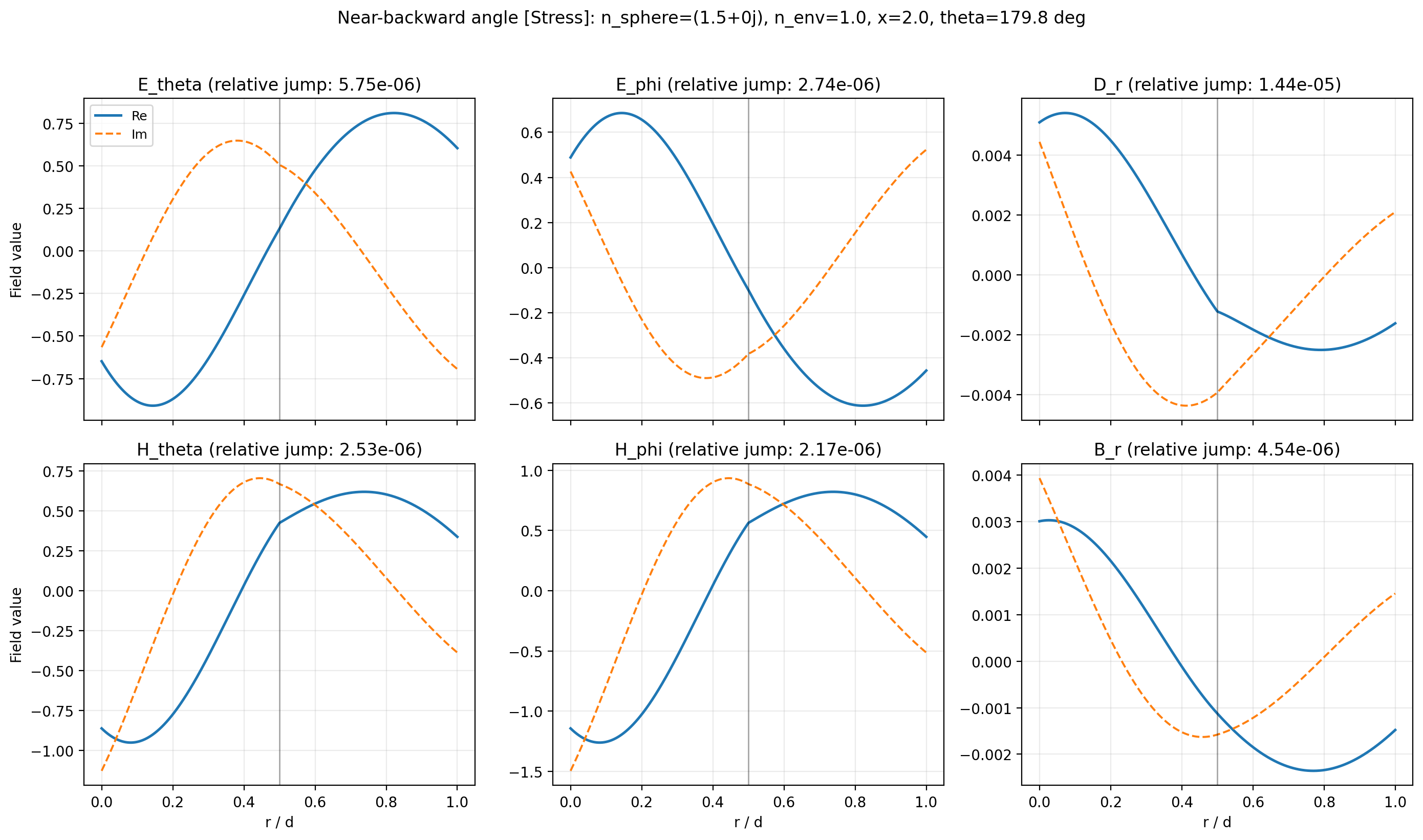

[Stress] Near-backward angle: n_sphere=(1.5+0j), n_env=1.0, x=2.0, theta=179.8 deg, lambda0=1.570796
  E_theta  relative jump near r=d/2: 5.755e-06
  E_phi    relative jump near r=d/2: 2.736e-06
  D_r      relative jump near r=d/2: 1.444e-05
  H_theta  relative jump near r=d/2: 2.528e-06
  H_phi    relative jump near r=d/2: 2.173e-06
  B_r      relative jump near r=d/2: 4.544e-06
  max_jump relative jump near r=d/2: 1.444e-05
