Anomalous diffraction theory

We do some comparisons with results from Anomalous Diffraction Theory. The formulas used below are from Moosmüller and Sorensen Single scattering albedo of homogeneous, spherical particles in the transition regime The results match those shown in their paper.

Scott Prahl

May 2024

[1]:

import numpy as np
import matplotlib.pyplot as plt
import miepython
%config InlineBackend.figure_format = 'retina'

Approximations

First thing is to define some reasonably accurate approximations for the efficiencies for large spheres. This way we can ensure that the limiting cases behave as they should.

[2]:

def Qabs_adt(m,x):
    """
    Anomalous diffraction theory approximation for absorption efficiency
    """
    n = m.real
    kappa = abs(m.imag)

    if kappa == 0:
        return np.zeros_like(x)
    return 1+2*np.exp(-4*kappa*x)/(4*kappa*x)+2*(np.exp(-4*kappa*x)-1)/(4*kappa*x)**2

def Qext_adt(m,x):
    """
    Anomalous diffraction theory approximation for extinction efficiency
    """
    n = m.real
    kappa = abs(m.imag)
    rho = 2*x*np.abs(m-1)
    beta = np.arctan2(kappa,n-1)
    ex = np.exp(-rho * np.tan(beta))

    qext_adt = 2
    qext_adt += -4*ex*np.cos(beta)/rho*np.sin(rho-beta)
    qext_adt += -4*ex*np.cos(beta)**2/rho**2*np.cos(rho-2*beta)
    qext_adt += 4*np.cos(beta)**2/rho**2*np.cos(2*beta)
    return qext_adt


def Qabs_madt(m,x):
    """
    Modified anomalous diffraction theory approximation for absorption efficiency
    """
    n = m.real
    kappa = abs(m.imag)

    if kappa == 0:
        return np.zeros_like(x)

    qabs_adt = Qabs_adt(m,x)
    epsilon = 0.25 + 0.61*(1-np.exp(-8*np.pi/3*kappa))**2
    c1 = 0.25*(1+np.exp(-1167*kappa))*(1-qabs_adt)
    c2 = np.sqrt(2*epsilon*x/np.pi)*np.exp(0.5-epsilon*x/np.pi)*(0.7393*n-0.6069)
    return (1+c1+c2)*qabs_adt


def Qext_madt(m,x):
    """
    Modified anomalous diffraction theory approximation for extinction efficiency
    """
    n = m.real
    kappa = -np.imag(m)

    qext_adt = Qext_adt(m,x)
    epsilon = 0.25 + 0.61*(1-np.exp(-8*np.pi/3*kappa))**2
    c2 = np.sqrt(2*epsilon*x/np.pi)*np.exp(0.5-epsilon*x/np.pi)*(0.7393*n-0.6069)
    Qedge = (1-np.exp(-0.06*x))*x**(-2/3)

    return (1+0.5*c2)*qext_adt+Qedge

No Absorption Case `m=1.5`

[3]:

def add_common_plot_stuff(ymax):
    plt.xlabel(r"Size Parameter $2\pi a/\lambda$")
    plt.axvspan(0.1, 1, color='cyan', alpha=0.4)
    plt.text(0.3, 0.95*ymax, 'Rayleigh\nRegime', ha='center', va='top')
    plt.axvspan(1, 100, color='pink', alpha=0.4)
    plt.text(10, 0.95*ymax, 'Transition\nRegime', ha='center', va='top')
    plt.axvspan(100, 100000, color='yellow', alpha=0.4)
    plt.text(3000, 0.95*ymax, 'Geometric\nRegime', ha='center', va='top')
    plt.legend(loc='lower right')
    plt.grid()
    plt.xlim(0.1,100000)
    plt.ylim(0, ymax)

[4]:

m = 1.5
x = np.logspace(-1, 5, 300)  # also in microns
qext, qsca, qback, g = miepython.mie(m,x)
qabs = qext-qsca

[5]:

plt.figure(figsize=(8,4.5))
plt.semilogx(x, qabs, 'b-', label="miepython")
plt.semilogx(x, Qabs_adt(m,x), 'r', label="ADT")
plt.semilogx(x, Qabs_madt(m,x), 'g:', label="MADT")
plt.ylabel("$Q_{abs}$")
add_common_plot_stuff(0.05)
plt.ylim(-0.05,0.05)
plt.title("Absorption Efficiency for m=%.3f-%.3fi" % (m.real,abs(m.imag)))
plt.show()

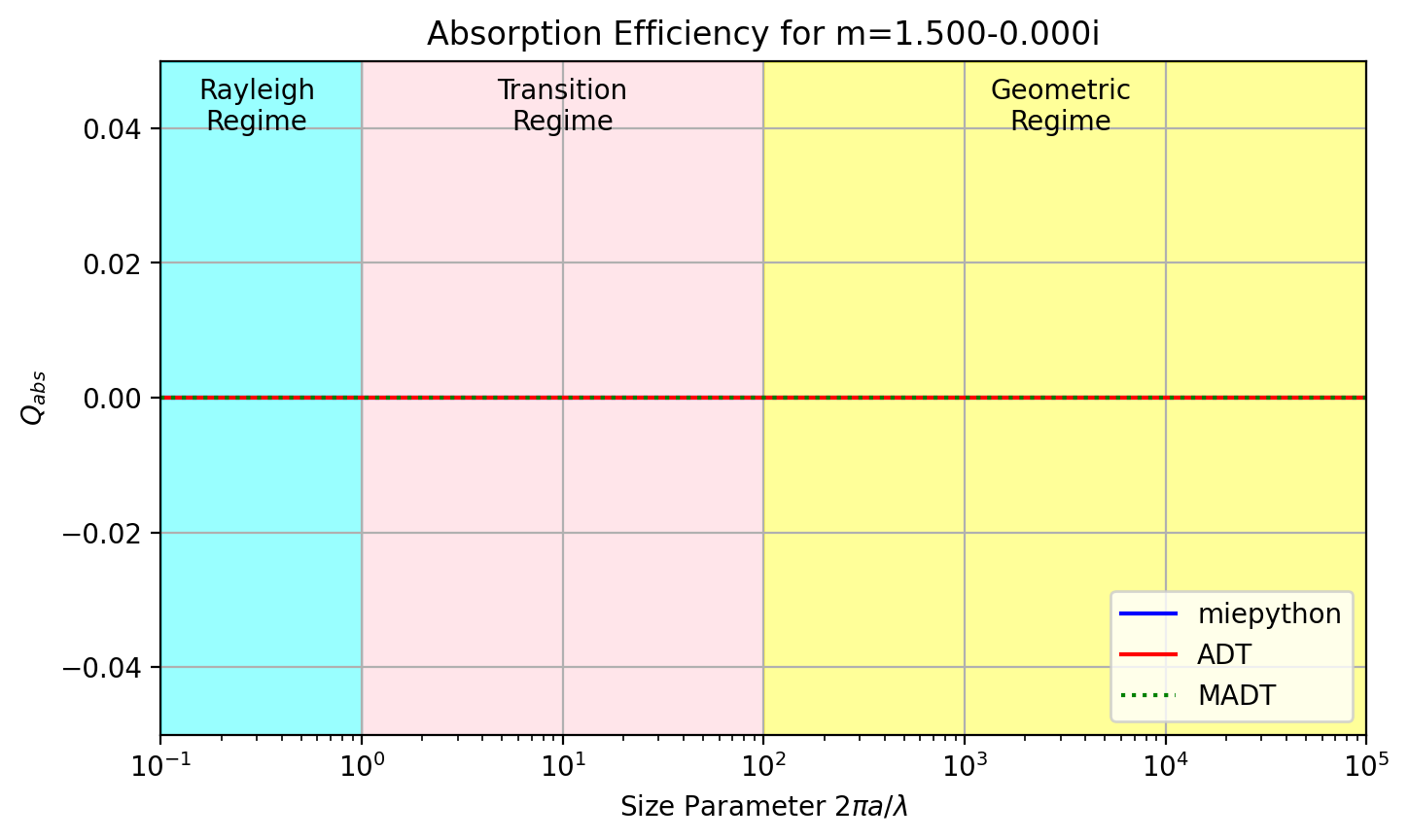

_images/08_large_spheres_7_0.png

[6]:

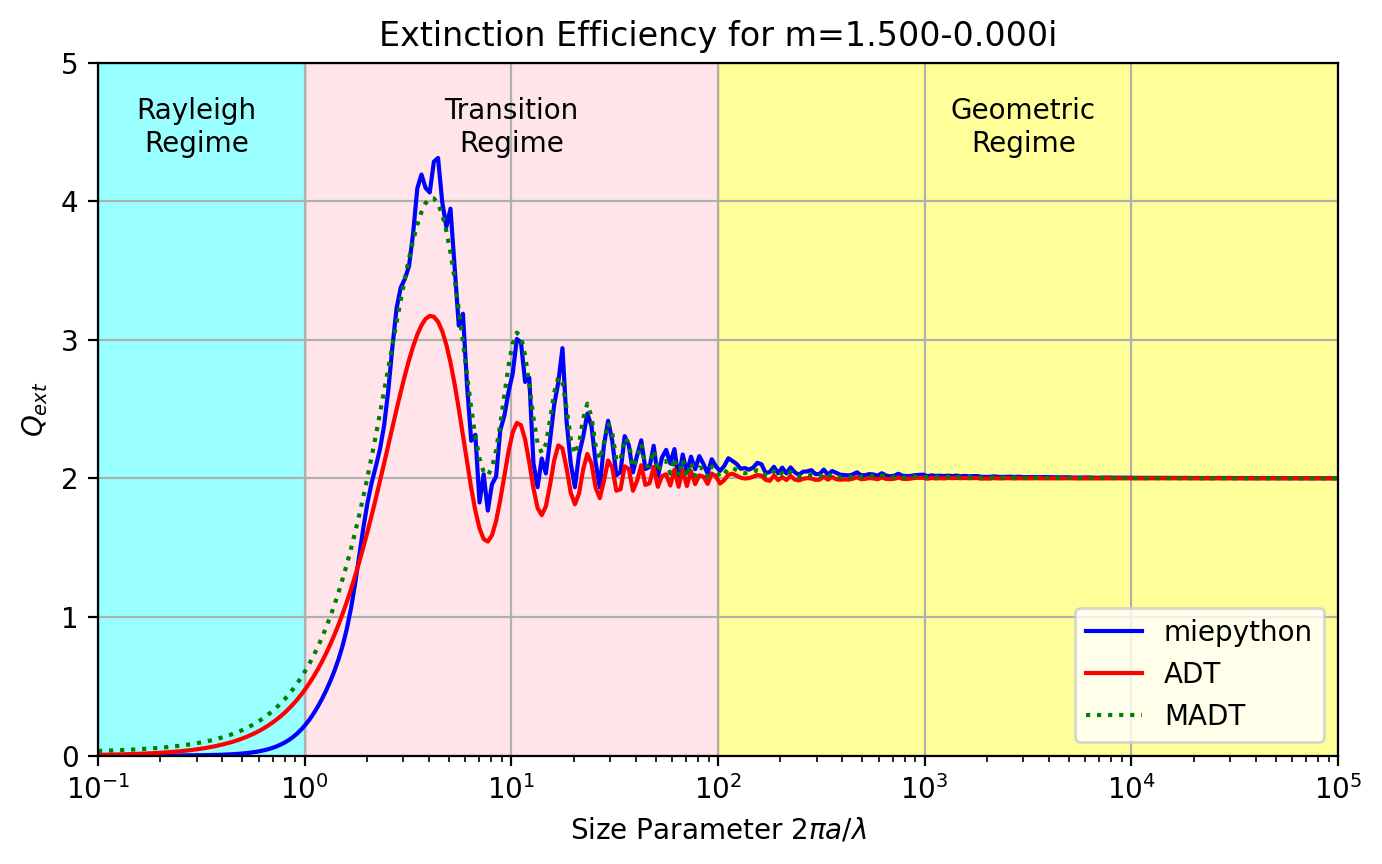

plt.figure(figsize=(8,4.5))
plt.title("Extinction Efficiency for m=%.3f-%.3fi" % (m.real,abs(m.imag)))

plt.semilogx(x, qext, 'b', label="miepython")
plt.semilogx(x, Qext_adt(m,x), 'r', label="ADT")
plt.semilogx(x, Qext_madt(m,x), 'g:', label="MADT")
plt.ylabel("$Q_{ext}$")
add_common_plot_stuff(5)
plt.show()

_images/08_large_spheres_8_0.png

[7]:

Qsca_adt = Qext_adt(m,x)-Qabs_adt(m,x)
Qsca_madt = Qext_madt(m,x)-Qabs_madt(m,x)

plt.figure(figsize=(8,4.5))

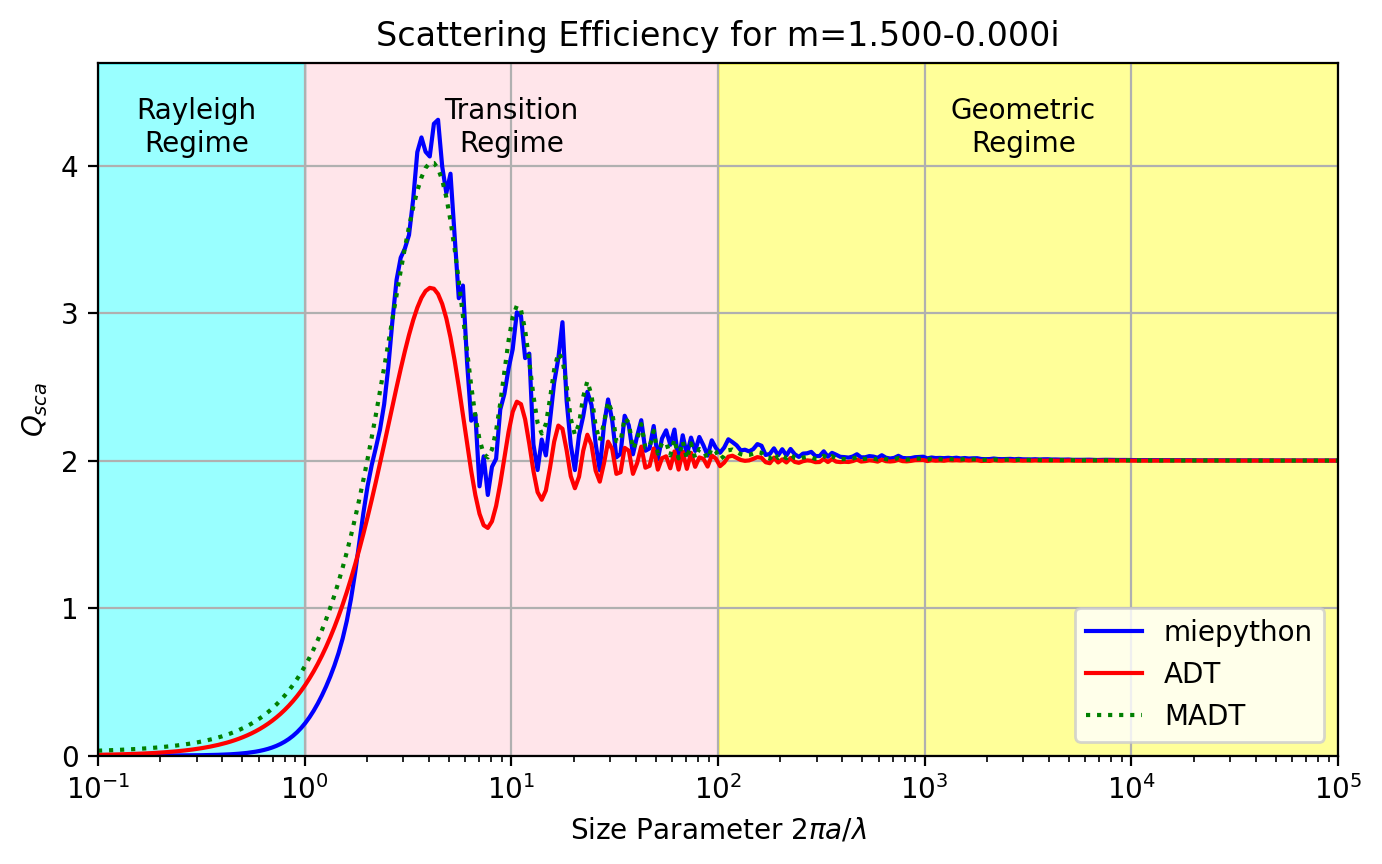

plt.title("Scattering Efficiency for m=%.3f-%.3fi" % (m.real,abs(m.imag)))
plt.semilogx(x, qsca, 'b', label="miepython")
plt.semilogx(x, Qsca_adt, 'r', label="ADT")
plt.semilogx(x, Qsca_madt, 'g:', label="MADT")
plt.ylabel("$Q_{sca}$")
add_common_plot_stuff(4.7)

plt.show()

_images/08_large_spheres_9_0.png

[8]:

Qpr_adt = Qext_adt(m,x)-g*Qsca_adt
Qpr_madt = Qext_madt(m,x)-g*Qsca_madt

plt.figure(figsize=(8,4.5))

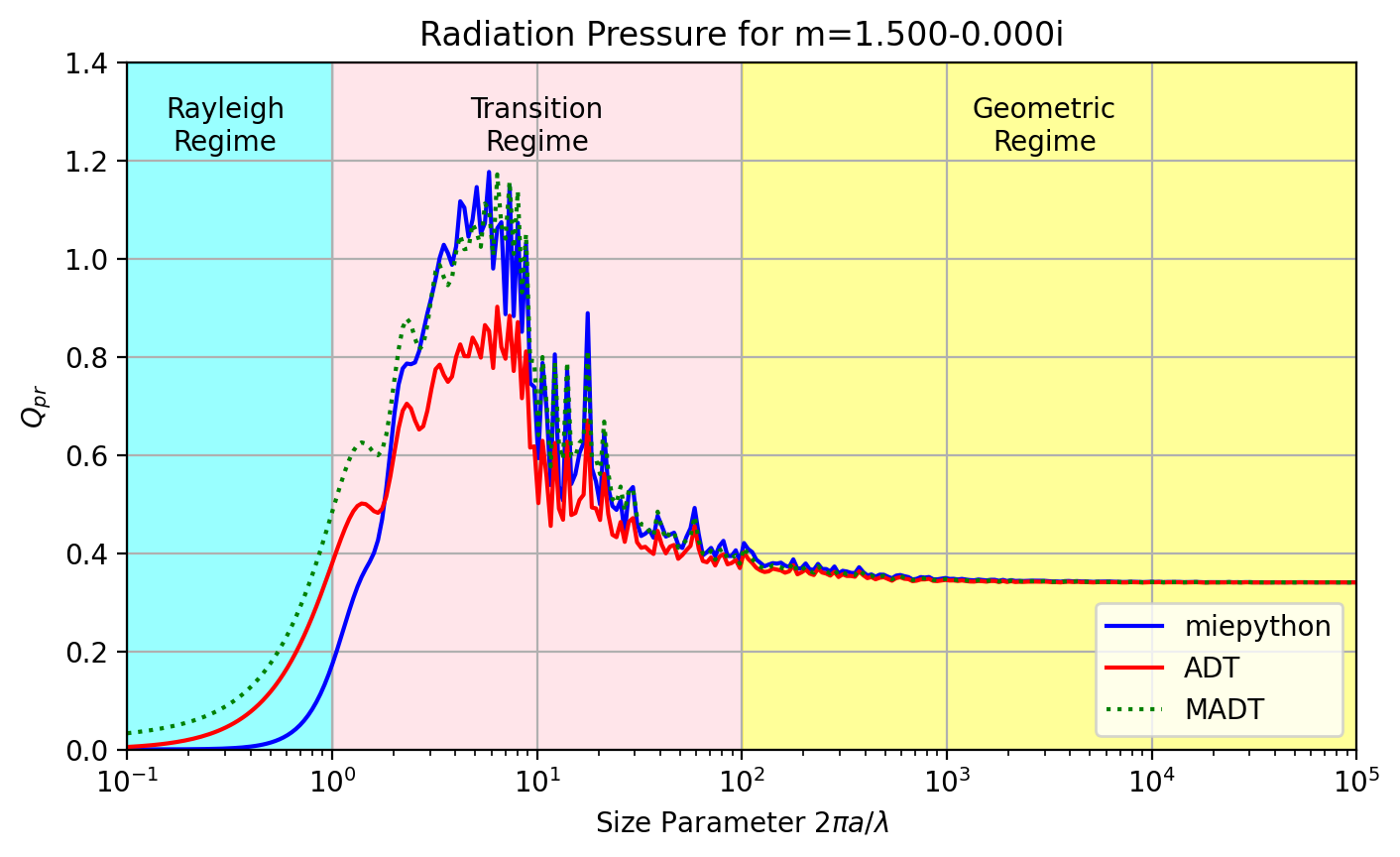

plt.title("Radiation Pressure for m=%.3f-%.3fi" % (m.real,abs(m.imag)))
plt.semilogx(x, qext - g * qsca, 'b', label="miepython")
plt.semilogx(x, Qpr_adt, 'r', label="ADT")
plt.semilogx(x, Qpr_madt, 'g:', label="MADT")
plt.ylabel("$Q_{pr}$")

add_common_plot_stuff(1.4)
plt.show()

_images/08_large_spheres_10_0.png

[9]:

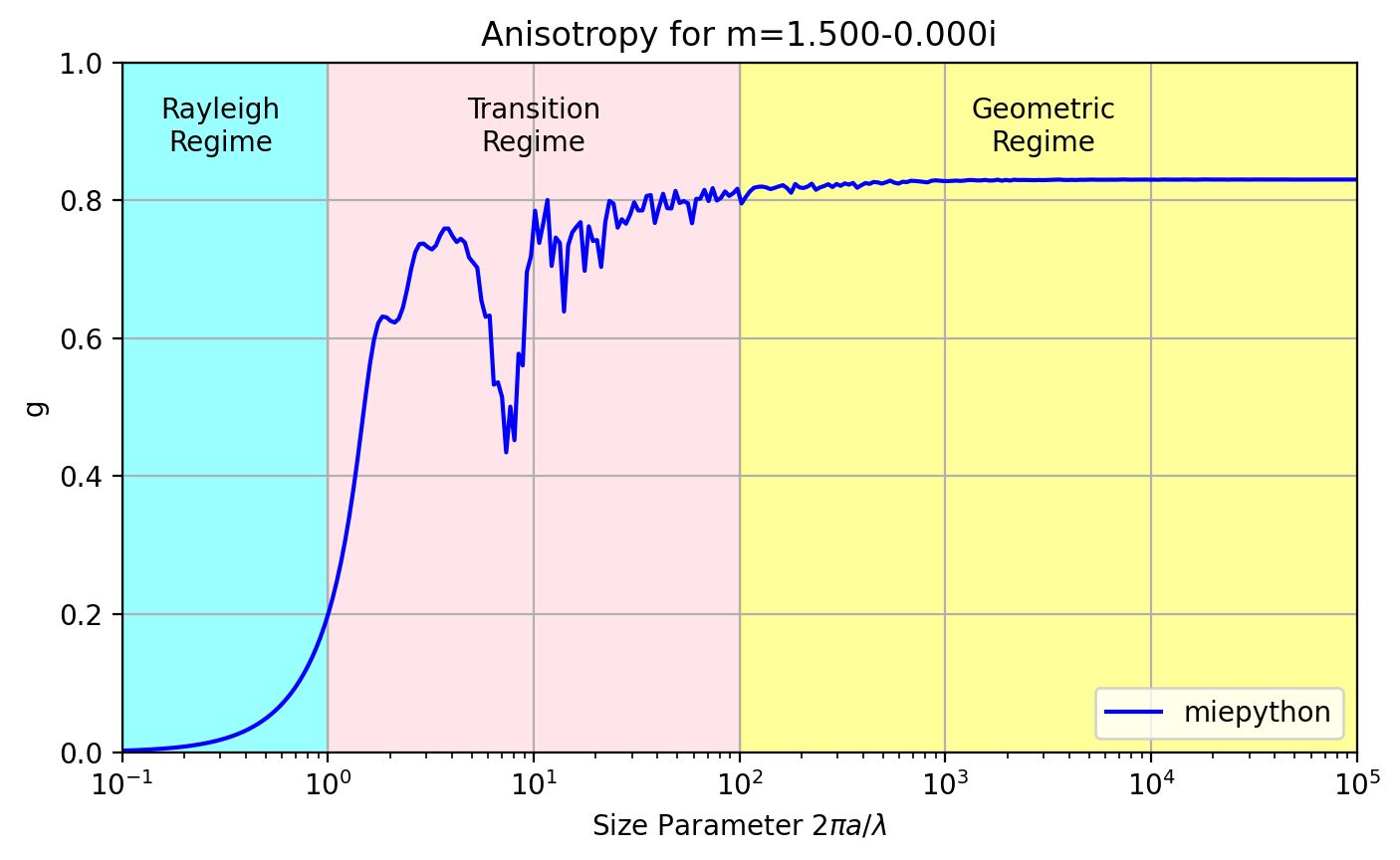

plt.figure(figsize=(8,4.5))
plt.title("Anisotropy for m=%.3f-%.3fi" % (m.real,abs(m.imag)))
plt.semilogx(x, g, 'b', label="miepython")
plt.ylabel("g")
add_common_plot_stuff(1.0)

plt.show()

_images/08_large_spheres_11_0.png

[10]:

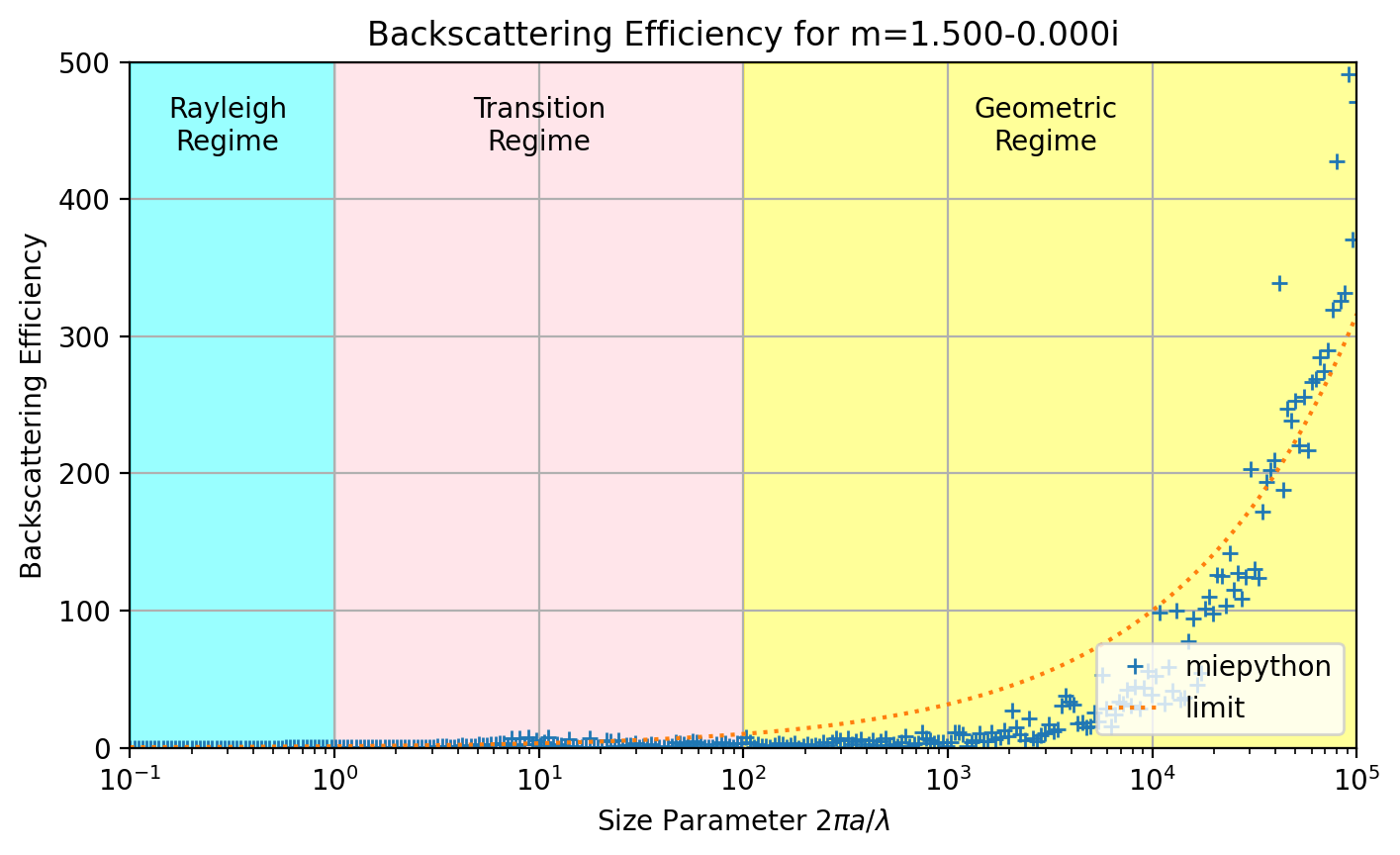

## No absorption means that the argument that the backscatter
## efficiency goes as the surface reflection fails.  See 09_backscatter.ipynb
## for tests that show that miepython correctly calculates qback

plt.figure(figsize=(8,4.5))
plt.title("Backscattering Efficiency for m=%.3f-%.3fi" % (m.real,abs(m.imag)))
plt.semilogx(x, qback, '+', label="miepython")
plt.semilogx(x, x**0.5, ':', label="limit")
plt.ylabel("Backscattering Efficiency")
add_common_plot_stuff(500)

plt.show()

_images/08_large_spheres_12_0.png

A little absorption `m=1.5-0.001j`

[11]:

m = 1.5-0.001j
x = np.logspace(-1, 5, 50)  # also in microns
qext, qsca, qback, g = miepython.mie(m,x)
qabs = qext-qsca

[12]:

plt.figure(figsize=(8,4.5))
plt.title("Absorption Efficiency for m=%.3f-%.3fi" % (m.real,abs(m.imag)))
plt.semilogx(x, qabs, 'b', label="miepython")
plt.semilogx(x, Qabs_adt(m,x), 'r', label="ADT")
plt.semilogx(x, Qabs_madt(m,x), 'g:', label="MADT")
plt.ylabel("$Q_{abs}$")
add_common_plot_stuff(1.2)
plt.show()

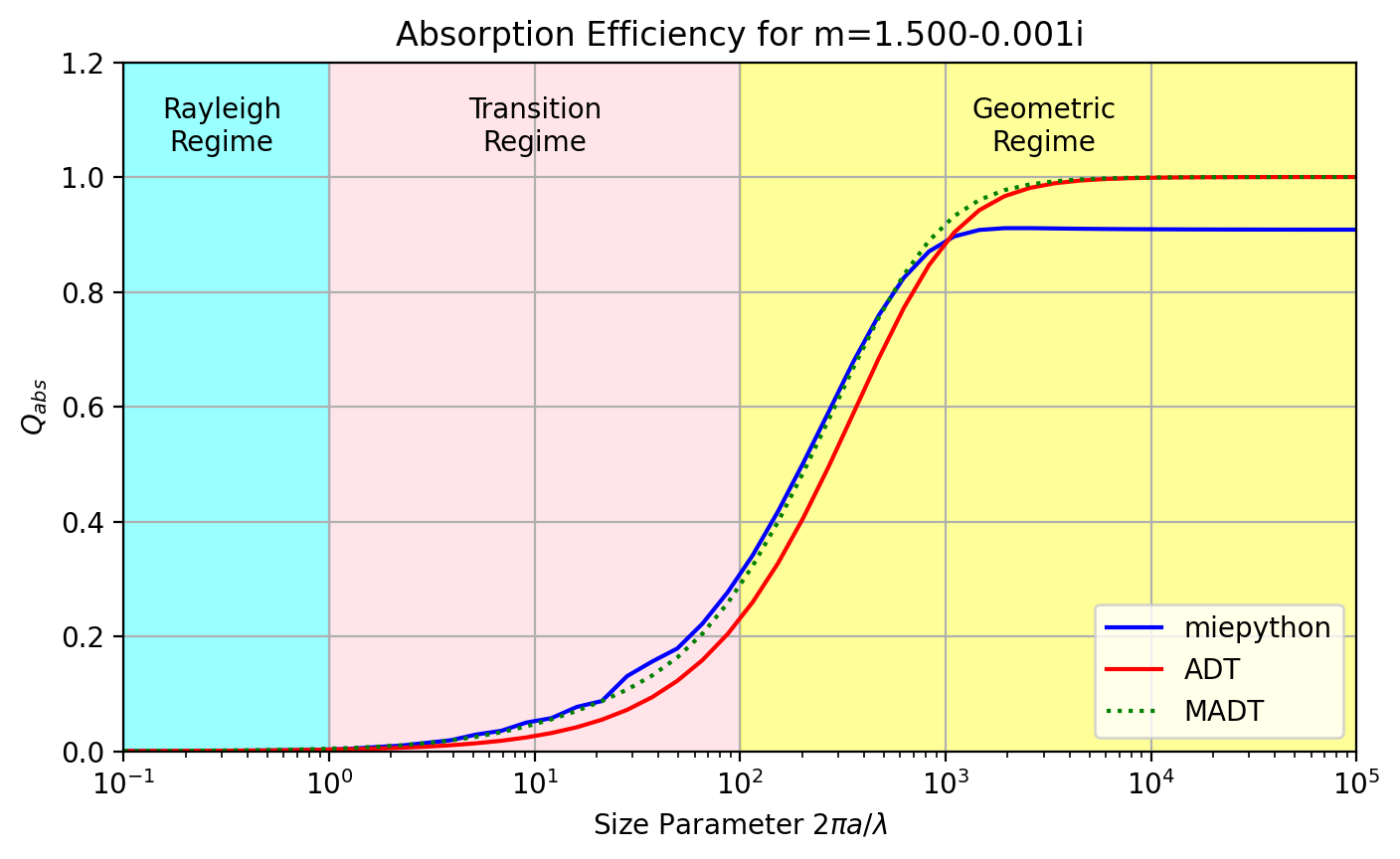

_images/08_large_spheres_15_0.png

[13]:

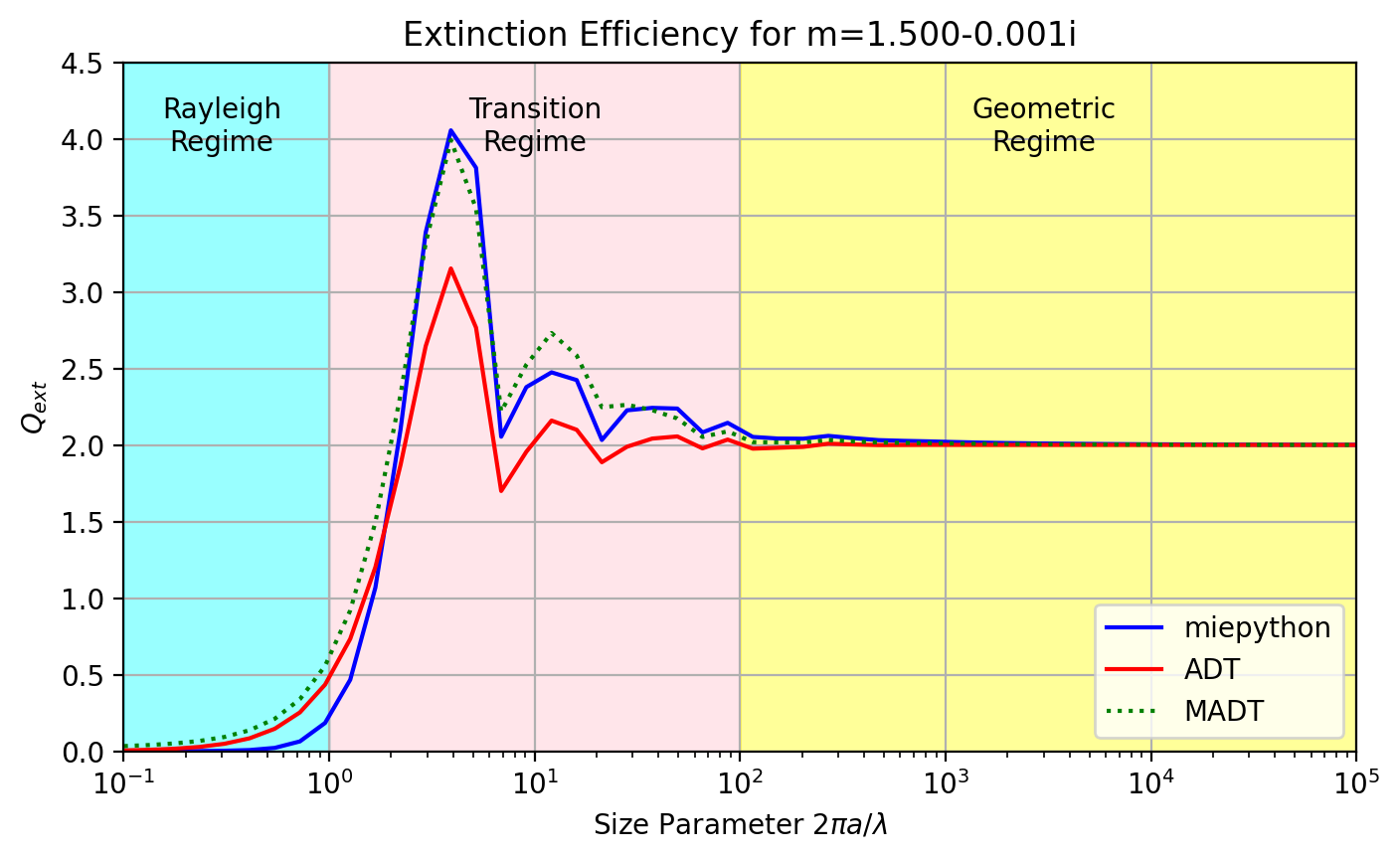

plt.figure(figsize=(8,4.5))
plt.title("Extinction Efficiency for m=%.3f-%.3fi" % (m.real,abs(m.imag)))
plt.semilogx(x, qext, 'b', label="miepython")
plt.semilogx(x, Qext_adt(m,x), 'r', label="ADT")
plt.semilogx(x, Qext_madt(m,x), 'g:', label="MADT")
plt.ylabel("$Q_{ext}$")
add_common_plot_stuff(4.5)
plt.show()

_images/08_large_spheres_16_0.png

[14]:

Qsca_adt = Qext_adt(m,x)-Qabs_adt(m,x)
Qsca_madt = Qext_madt(m,x)-Qabs_madt(m,x)

plt.figure(figsize=(8,4.5))
plt.title("Scattering Efficiency for m=%.3f-%.3fi" % (m.real,abs(m.imag)))
plt.semilogx(x, qsca, 'b', label="miepython")
plt.semilogx(x, Qsca_adt, 'r', label="ADT")
plt.semilogx(x, Qsca_madt, 'g:', label="MADT")

plt.ylabel("$Q_{sca}$")
add_common_plot_stuff(4.5)
plt.show()

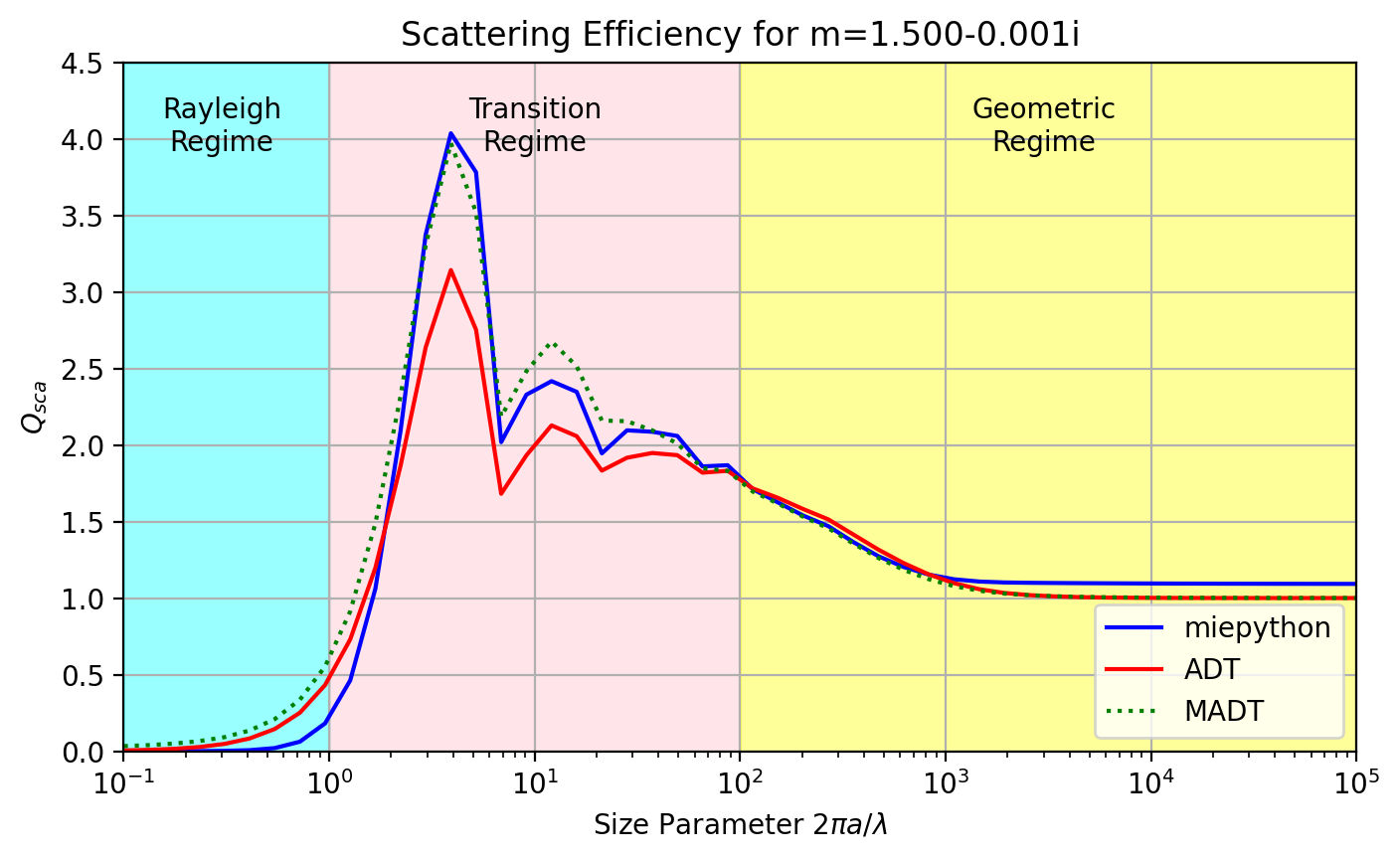

_images/08_large_spheres_17_0.png

[15]:

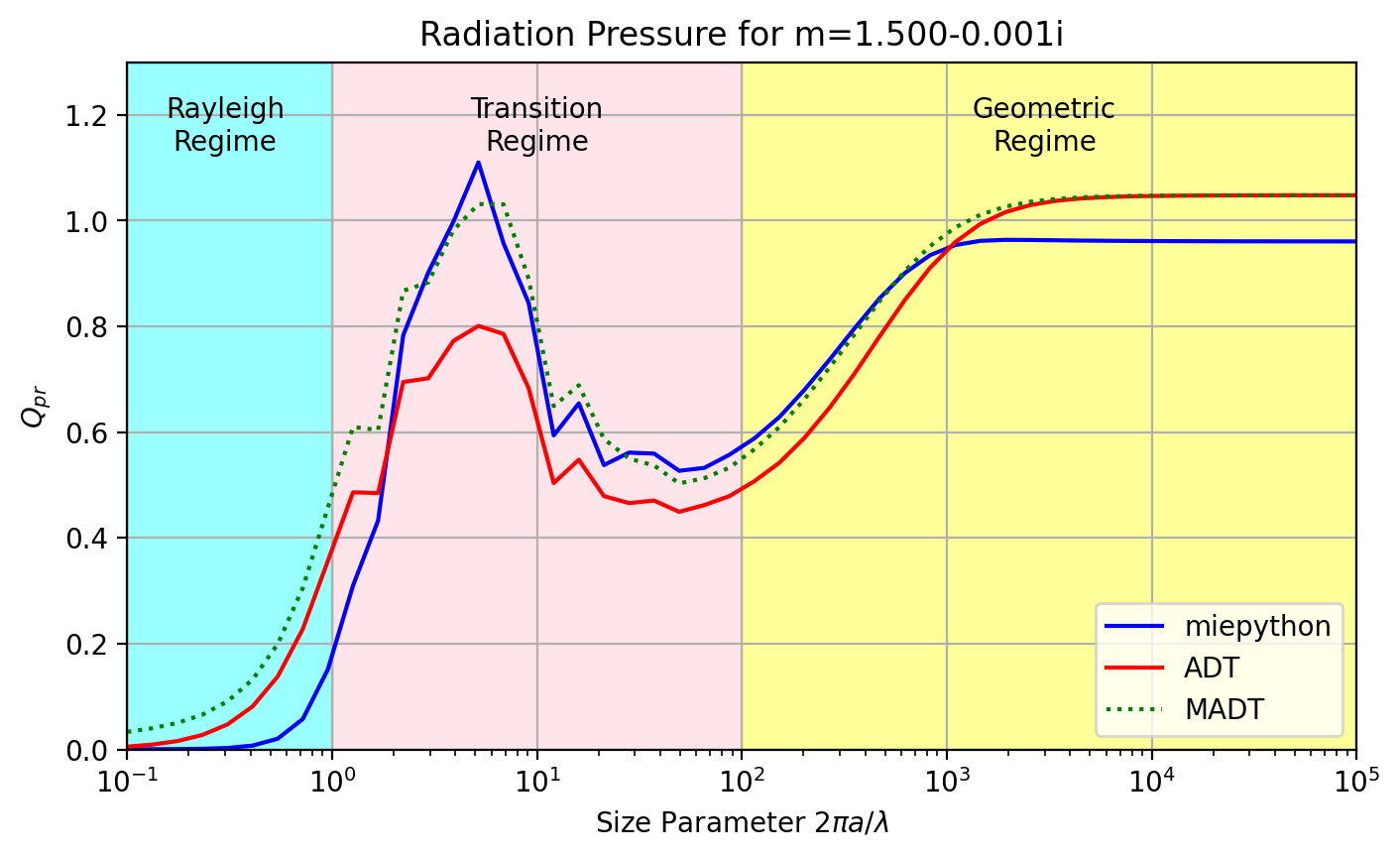

Qpr_adt = Qext_adt(m,x)-g*Qsca_adt
Qpr_madt = Qext_madt(m,x)-g*Qsca_madt

plt.figure(figsize=(8,4.5))
plt.title("Radiation Pressure for m=%.3f-%.3fi" % (m.real,abs(m.imag)))
plt.semilogx(x, qext - g * qsca, 'b', label="miepython")
plt.semilogx(x, Qpr_adt, 'r', label="ADT")
plt.semilogx(x, Qpr_madt, 'g:', label="MADT")
plt.ylabel("$Q_{pr}$")
add_common_plot_stuff(1.3)
plt.show()

_images/08_large_spheres_18_0.png

[16]:

plt.figure(figsize=(8,4.5))
plt.semilogx(x, g, 'b', label="miepython")
plt.ylabel("g")
plt.title("Anisotropy for m=%.3f-%.3fi" % (m.real,abs(m.imag)))
add_common_plot_stuff(1.1)
plt.show()

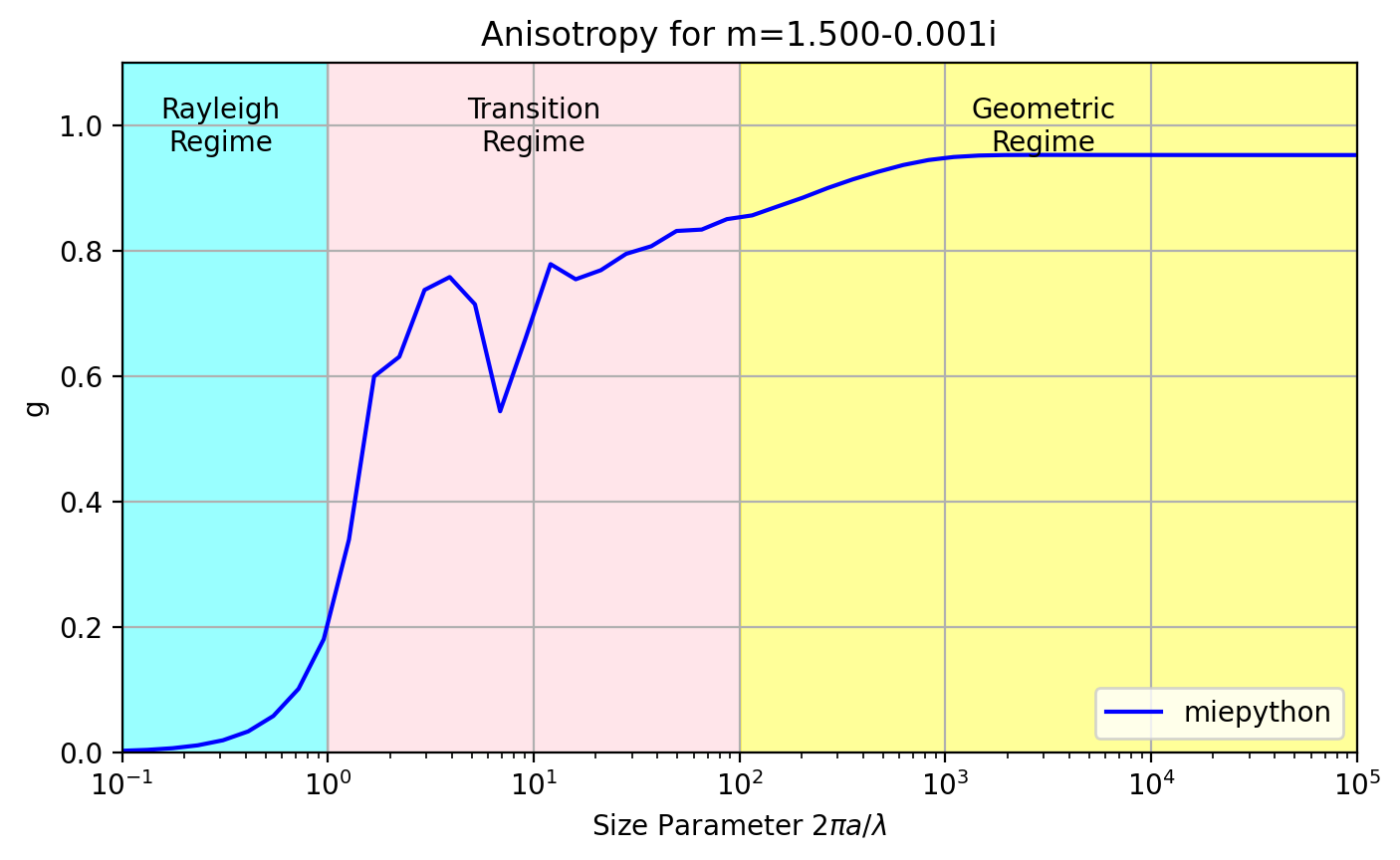

_images/08_large_spheres_19_0.png

[17]:

Qbacks = abs(m-1)**2/abs(m+1)**2
Qback = Qbacks * np.ones_like(x)

plt.figure(figsize=(8,4.5))
plt.semilogx(x, qback, '+', label="miepython")
plt.semilogx(x, Qback, ':', label="limit")

plt.ylabel("$Q_{back}$")

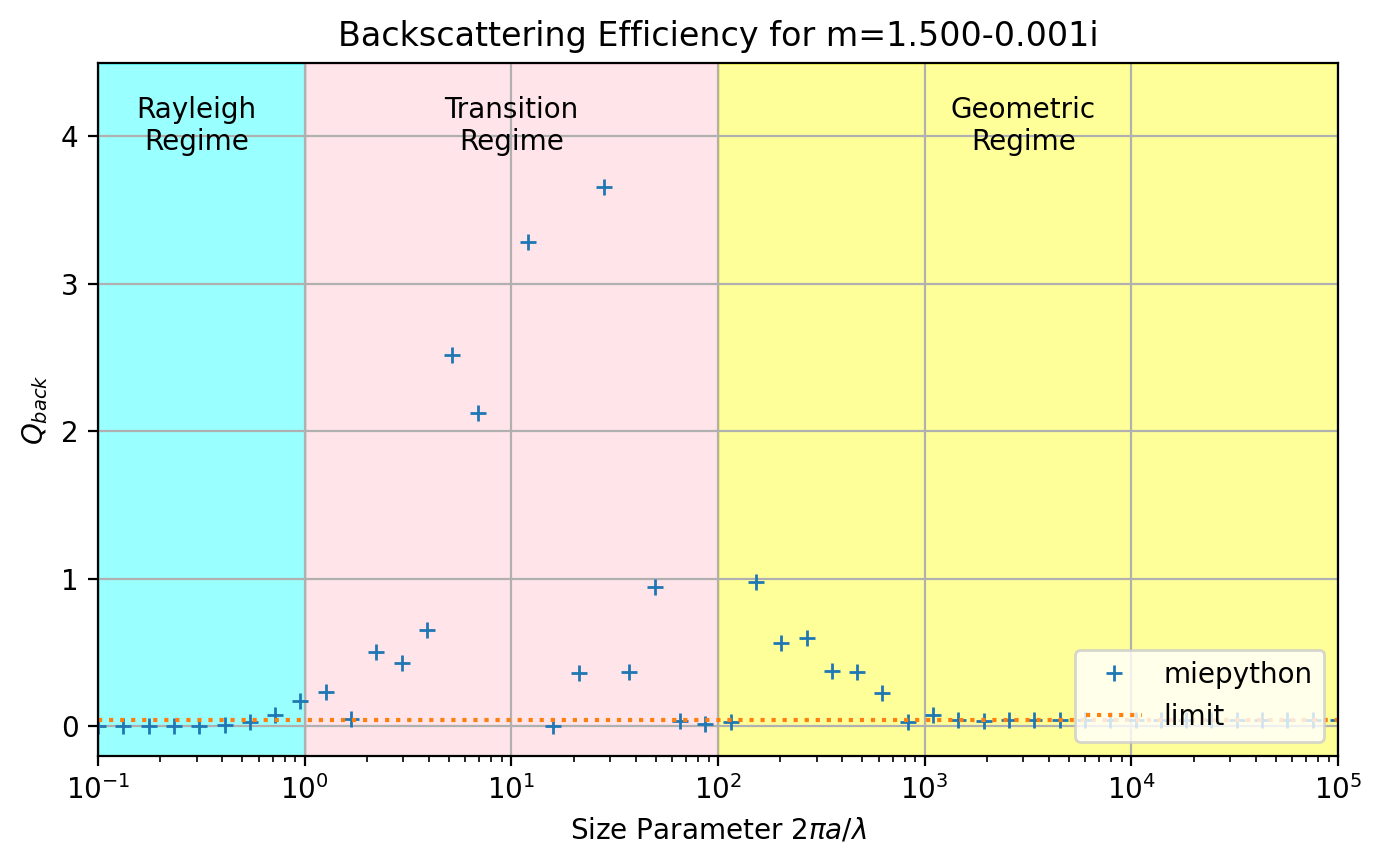

plt.title("Backscattering Efficiency for m=%.3f-%.3fi" % (m.real,abs(m.imag)))
add_common_plot_stuff(4.5)
plt.ylim(-0.2,4.5)
plt.show()

_images/08_large_spheres_20_0.png

Some Absorption `m=1.5-0.1j`

[18]:

m = 1.5-0.1j
x = np.logspace(-1, 5, 50)  # also in microns
qext, qsca, qback, g = miepython.mie(m,x)
qabs = qext-qsca

[19]:

plt.figure(figsize=(8,4.5))
plt.semilogx(x, qabs, 'b', label="miepython")
plt.semilogx(x, Qabs_adt(m,x), 'r', label="ADT")
plt.semilogx(x, Qabs_madt(m,x), 'g:', label="MADT")

plt.ylabel("$Q_{abs}$")
plt.title("Absorption Efficiency for m=%.3f-%.3fi" % (m.real,abs(m.imag)))
add_common_plot_stuff(1.5)
plt.show()

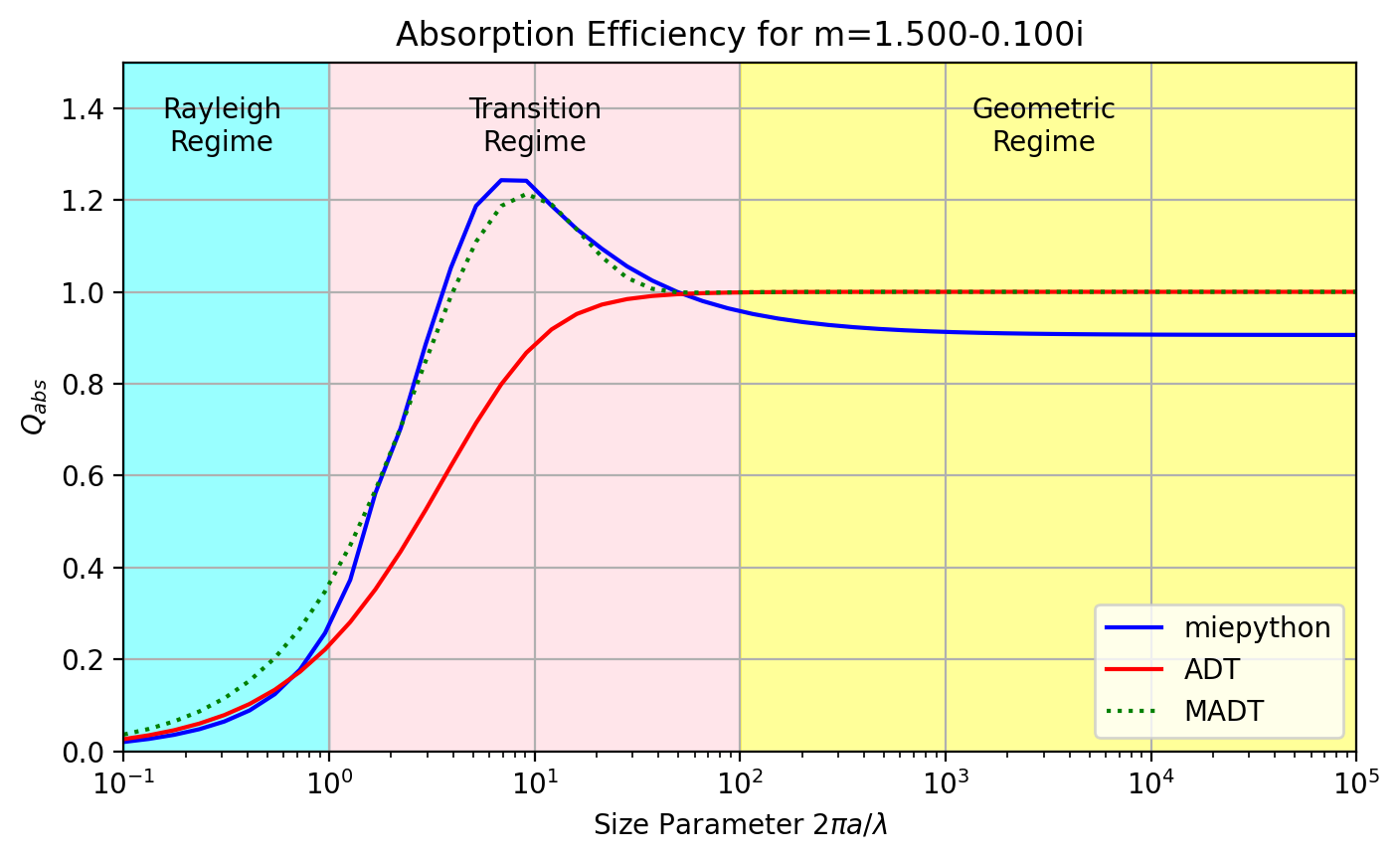

_images/08_large_spheres_23_0.png

[20]:

plt.figure(figsize=(8,4.5))
plt.semilogx(x, qext, 'b', label="miepython")
plt.semilogx(x, Qext_adt(m,x), 'r', label="ADT")
plt.semilogx(x, Qext_madt(m,x), 'g:', label="MADT")

plt.ylabel("$Q_{ext}$")
plt.title("Extinction Efficiency for m=%.3f-%.3fi" % (m.real,abs(m.imag)))
add_common_plot_stuff(3.5)
plt.show()

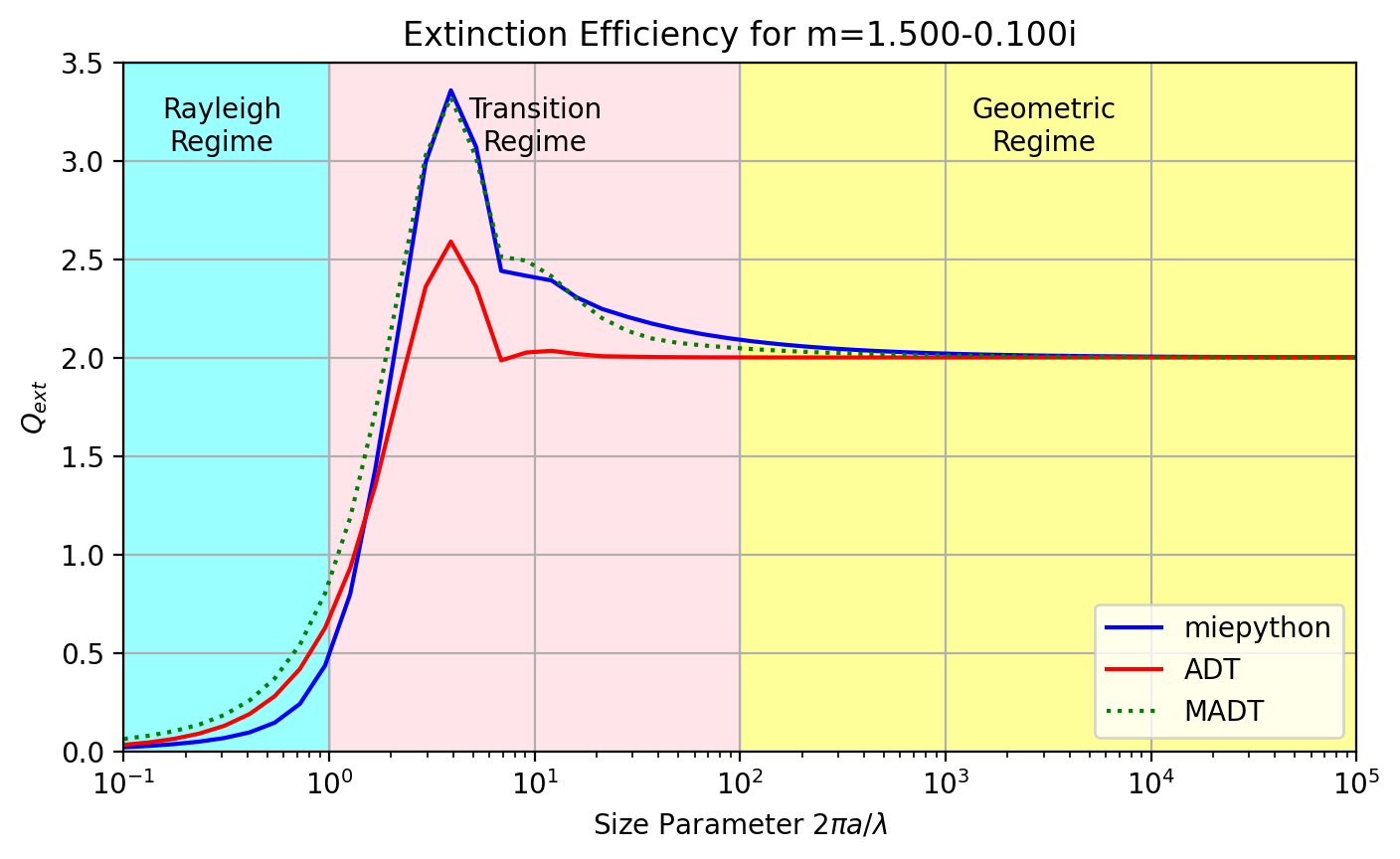

_images/08_large_spheres_24_0.png

[21]:

Qsca_adt = Qext_adt(m,x)-Qabs_adt(m,x)
Qsca_madt = Qext_madt(m,x)-Qabs_madt(m,x)

plt.figure(figsize=(8,4.5))
plt.semilogx(x, qsca, 'b', label="miepython")
plt.semilogx(x, Qsca_adt, 'r', label="ADT")
plt.semilogx(x, Qsca_madt, 'g:', label="MADT")

plt.ylabel("$Q_{sca}$")
plt.title("Scattering Efficiency for m=%.3f-%.3fi" % (m.real,abs(m.imag)))
add_common_plot_stuff(2.5)
plt.ylim(0,2.5)
plt.show()

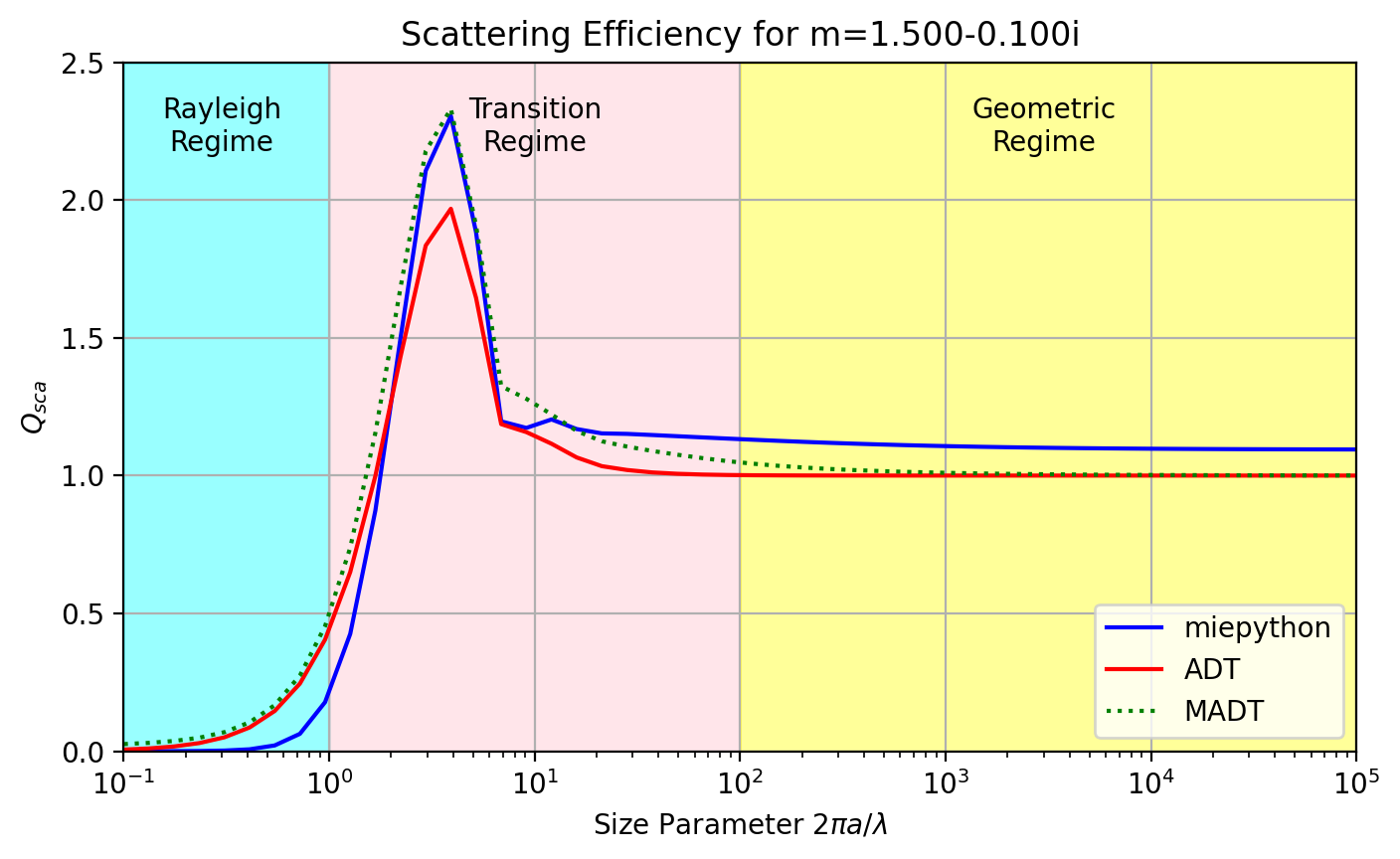

_images/08_large_spheres_25_0.png

[22]:

Qpr_adt = Qext_adt(m,x)-g*Qsca_adt
Qpr_madt = Qext_madt(m,x)-g*Qsca_madt

plt.figure(figsize=(8,4.5))
plt.semilogx(x, qext - g * qsca, 'b', label="miepython")
plt.semilogx(x, Qpr_adt, 'r', label="ADT")
plt.semilogx(x, Qpr_madt, 'g:', label="MADT")
plt.ylabel("$Q_{pr}$")

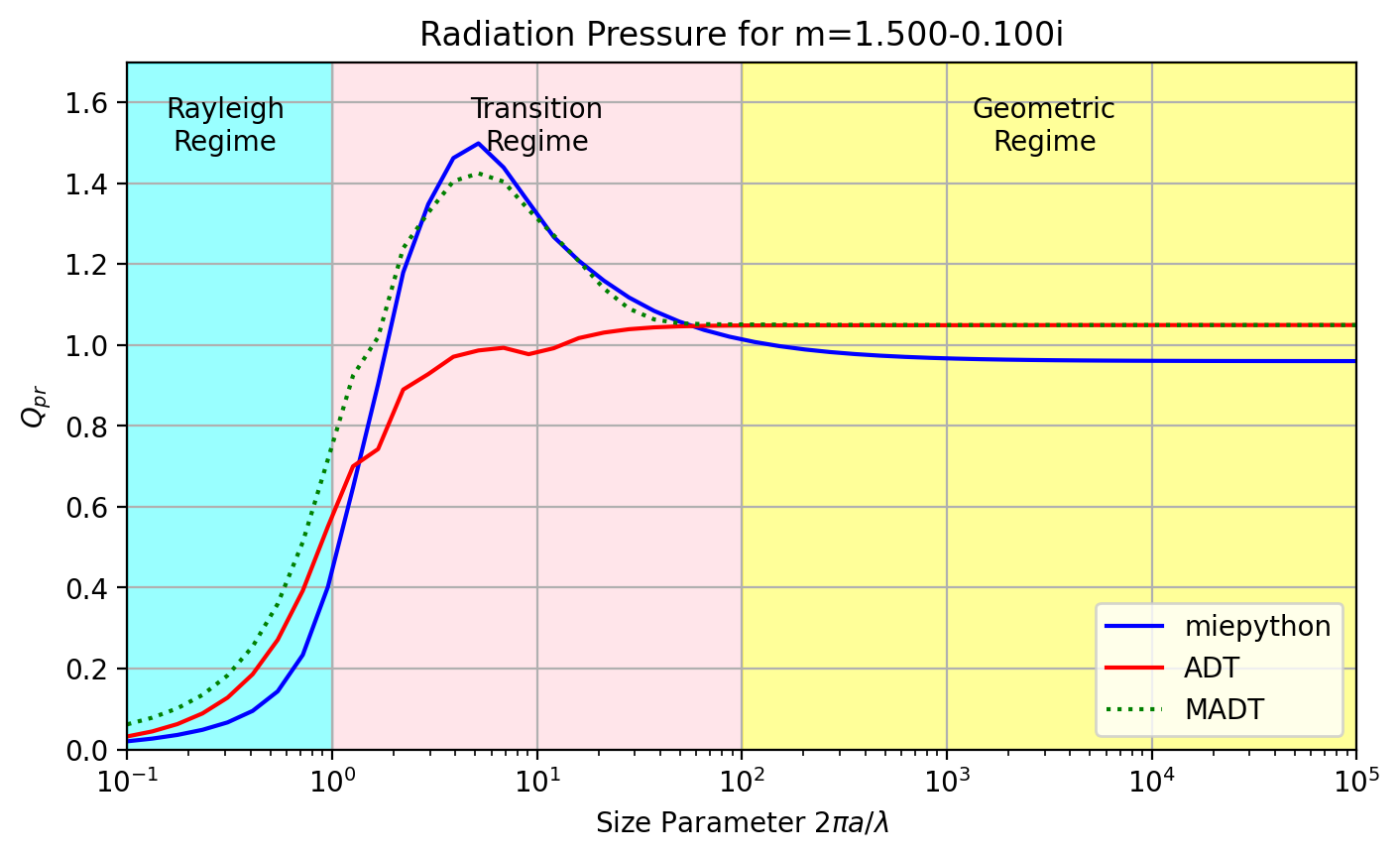

plt.title("Radiation Pressure for m=%.3f-%.3fi" % (m.real,abs(m.imag)))
add_common_plot_stuff(1.7)
plt.show()

_images/08_large_spheres_26_0.png

[23]:

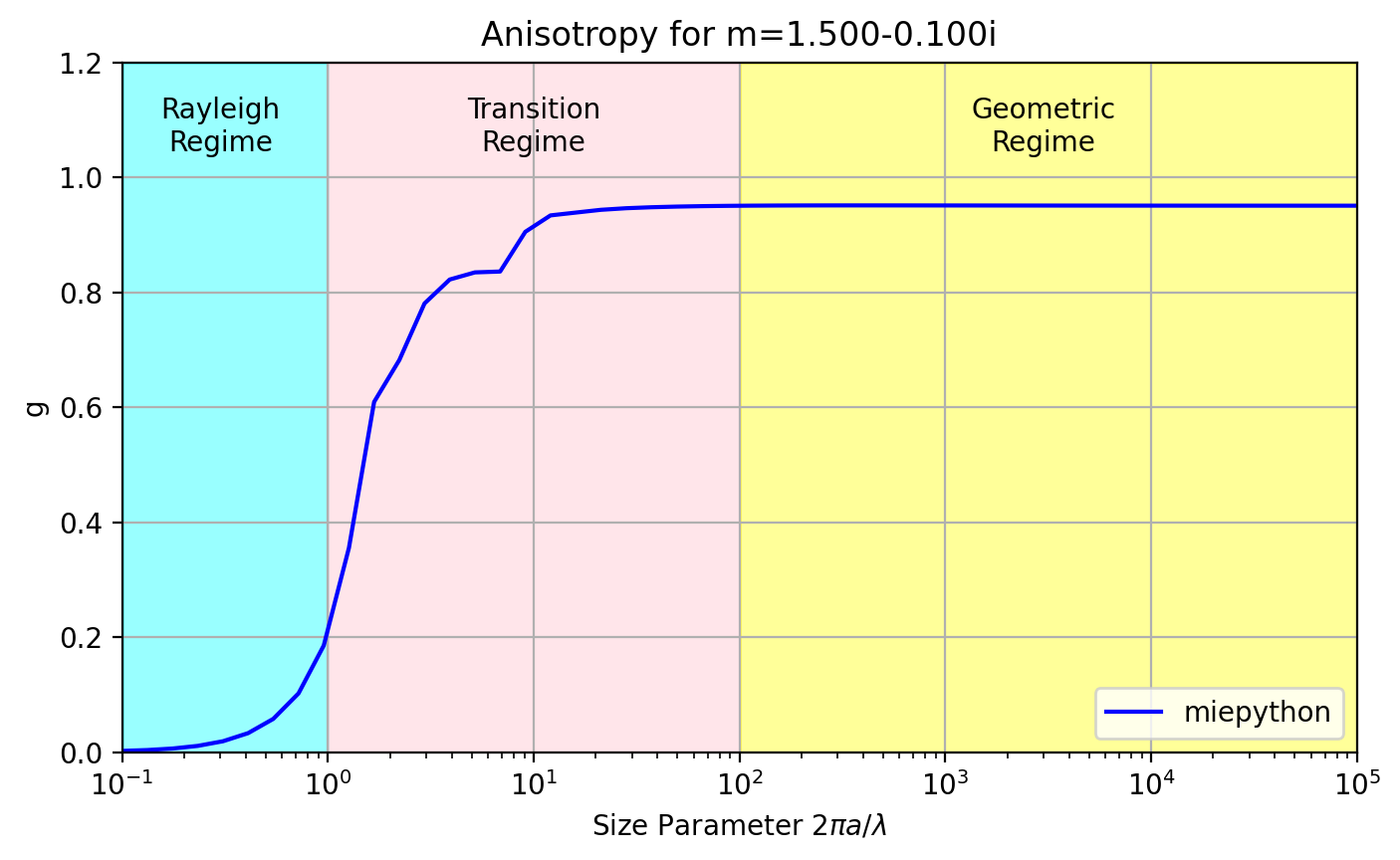

plt.figure(figsize=(8,4.5))
plt.semilogx(x, g, 'b', label="miepython")

plt.xlabel("Size Parameter")
plt.ylabel("g")
plt.title("Anisotropy for m=%.3f-%.3fi" % (m.real,abs(m.imag)))
add_common_plot_stuff(1.2)
plt.show()

_images/08_large_spheres_27_0.png

[24]:

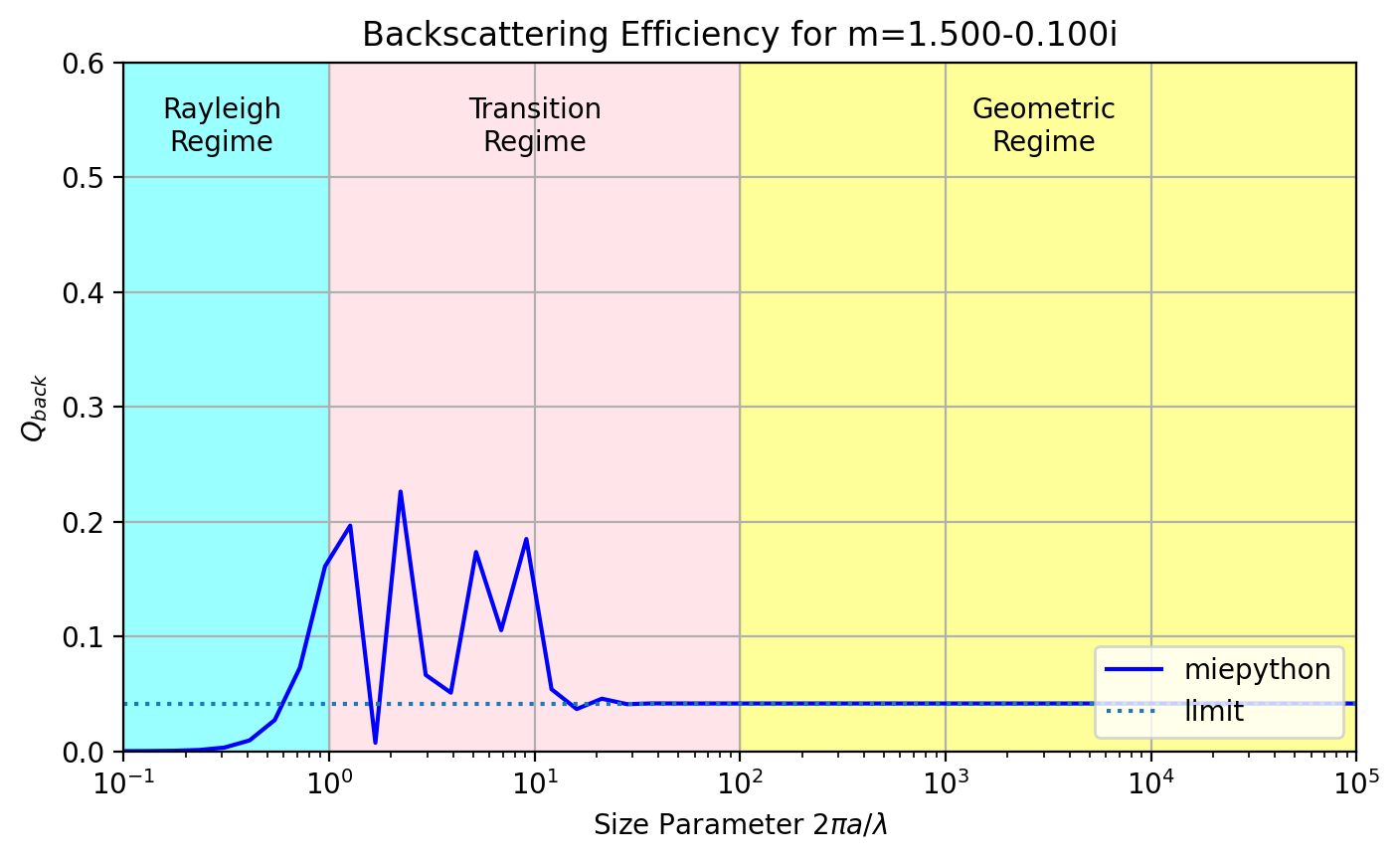

Qbacks = abs(m-1)**2/abs(m+1)**2
Qback = Qbacks * np.ones_like(x)

plt.figure(figsize=(8,4.5))
plt.semilogx(x, qback, 'b', label="miepython")
plt.semilogx(x, Qback, ':', label="limit")

plt.ylabel("$Q_{back}$")
plt.title("Backscattering Efficiency for m=%.3f-%.3fi" % (m.real,abs(m.imag)))
add_common_plot_stuff(0.6)

plt.show()

_images/08_large_spheres_28_0.png

A lot of absorption `m=1.5-1j`

[25]:

m = 1.5-1j
x = np.logspace(-1, 5, 50)  # also in microns
qext, qsca, qback, g = miepython.mie(m,x)
qabs = qext-qsca

[26]:

plt.figure(figsize=(8,4.5))
plt.semilogx(x, qabs, 'b', label="miepython")
plt.semilogx(x, Qabs_adt(m,x), 'r', label="ADT")
plt.semilogx(x, Qabs_madt(m,x), 'g:', label="MADT")

plt.ylabel("$Q_{abs}$")

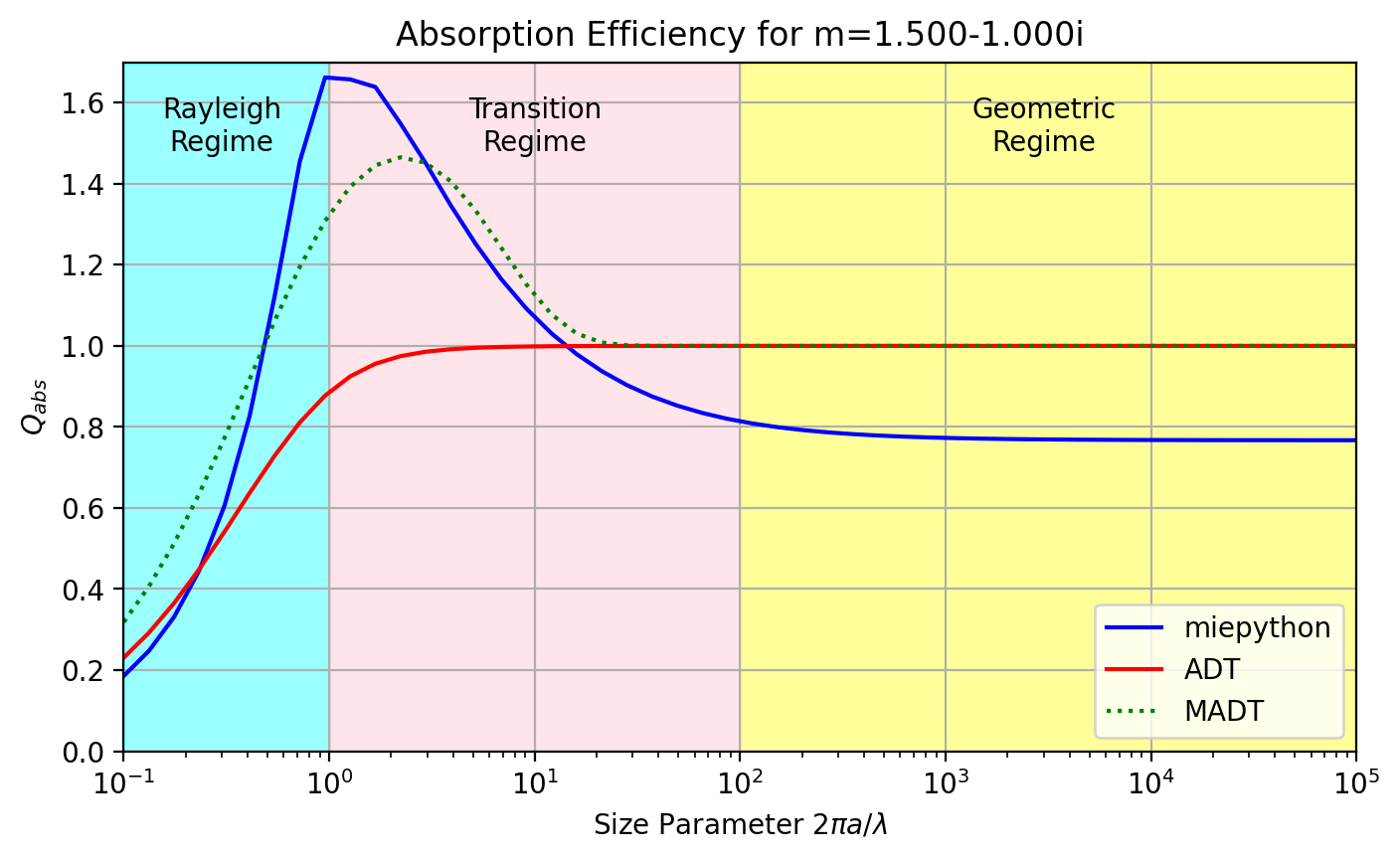

plt.title("Absorption Efficiency for m=%.3f-%.3fi" % (m.real,abs(m.imag)))
add_common_plot_stuff(1.7)
plt.show()

_images/08_large_spheres_31_0.png

[27]:

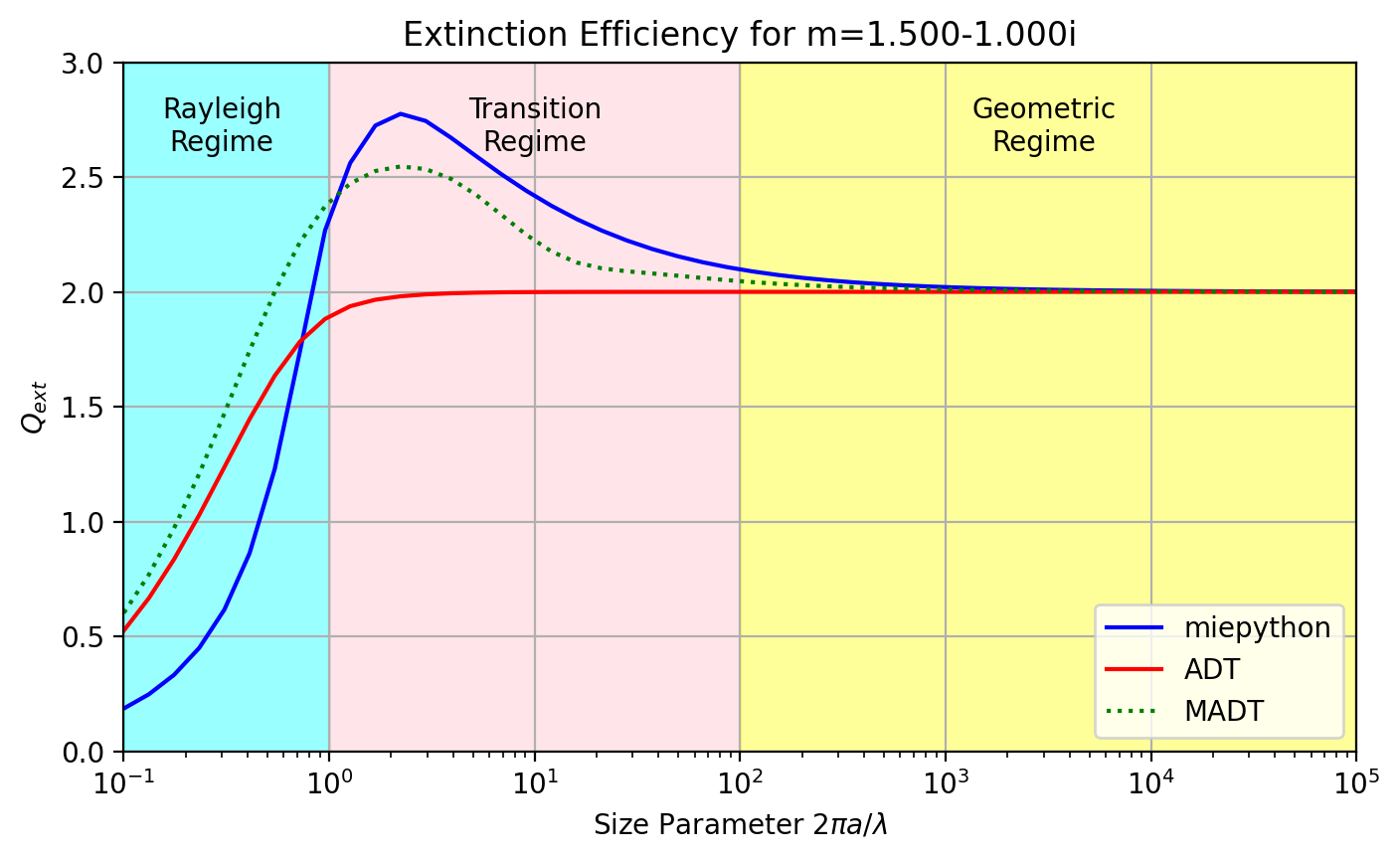

plt.figure(figsize=(8,4.5))
plt.semilogx(x, qext, 'b', label="miepython")
plt.semilogx(x, Qext_adt(m,x), 'r', label="ADT")
plt.semilogx(x, Qext_madt(m,x), 'g:', label="MADT")

plt.ylabel("$Q_{ext}$")
plt.title("Extinction Efficiency for m=%.3f-%.3fi" % (m.real,abs(m.imag)))
add_common_plot_stuff(3)

plt.show()

_images/08_large_spheres_32_0.png

[28]:

plt.figure(figsize=(8,4.5))
Qsca_adt = Qext_adt(m,x)-Qabs_adt(m,x)
Qsca_madt = Qext_madt(m,x)-Qabs_madt(m,x)
Qsca_geo = np.full_like(x,1 + abs((m-1)**2/(m+1)**2))

plt.semilogx(x, qsca, 'b', label="miepython")
plt.semilogx(x, Qsca_adt, 'r', label="ADT")
plt.semilogx(x, Qsca_madt, 'g:', label="MADT")

plt.ylabel("$Q_{sca}$")

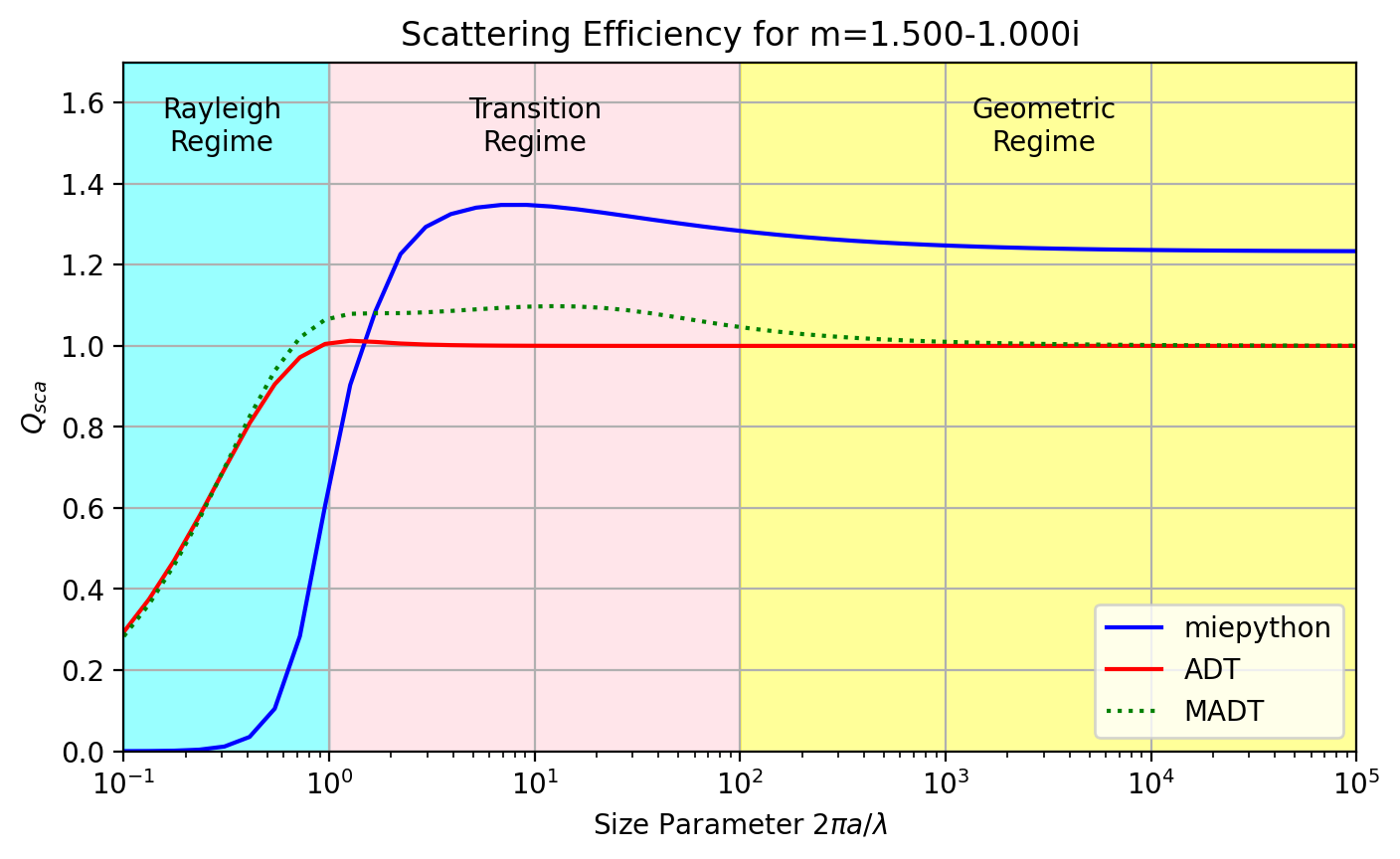

plt.title("Scattering Efficiency for m=%.3f-%.3fi" % (m.real,abs(m.imag)))
add_common_plot_stuff(1.7)

plt.show()

_images/08_large_spheres_33_0.png

[29]:

Qpr_adt = Qext_adt(m,x)-g*Qsca_adt
Qpr_madt = Qext_madt(m,x)-g*Qsca_madt

plt.figure(figsize=(8,4.5))
plt.semilogx(x, qext - g * qsca, 'b', label="miepython")
plt.semilogx(x, Qpr_adt, 'r', label="ADT")
plt.semilogx(x, Qpr_madt, 'g:', label="MADT")

plt.xlabel("Size Parameter")
plt.ylabel("$Q_{pr}$")
plt.title("Radiation Pressure for m=%.3f-%.3fi" % (m.real,abs(m.imag)))
add_common_plot_stuff(2.5)

plt.show()

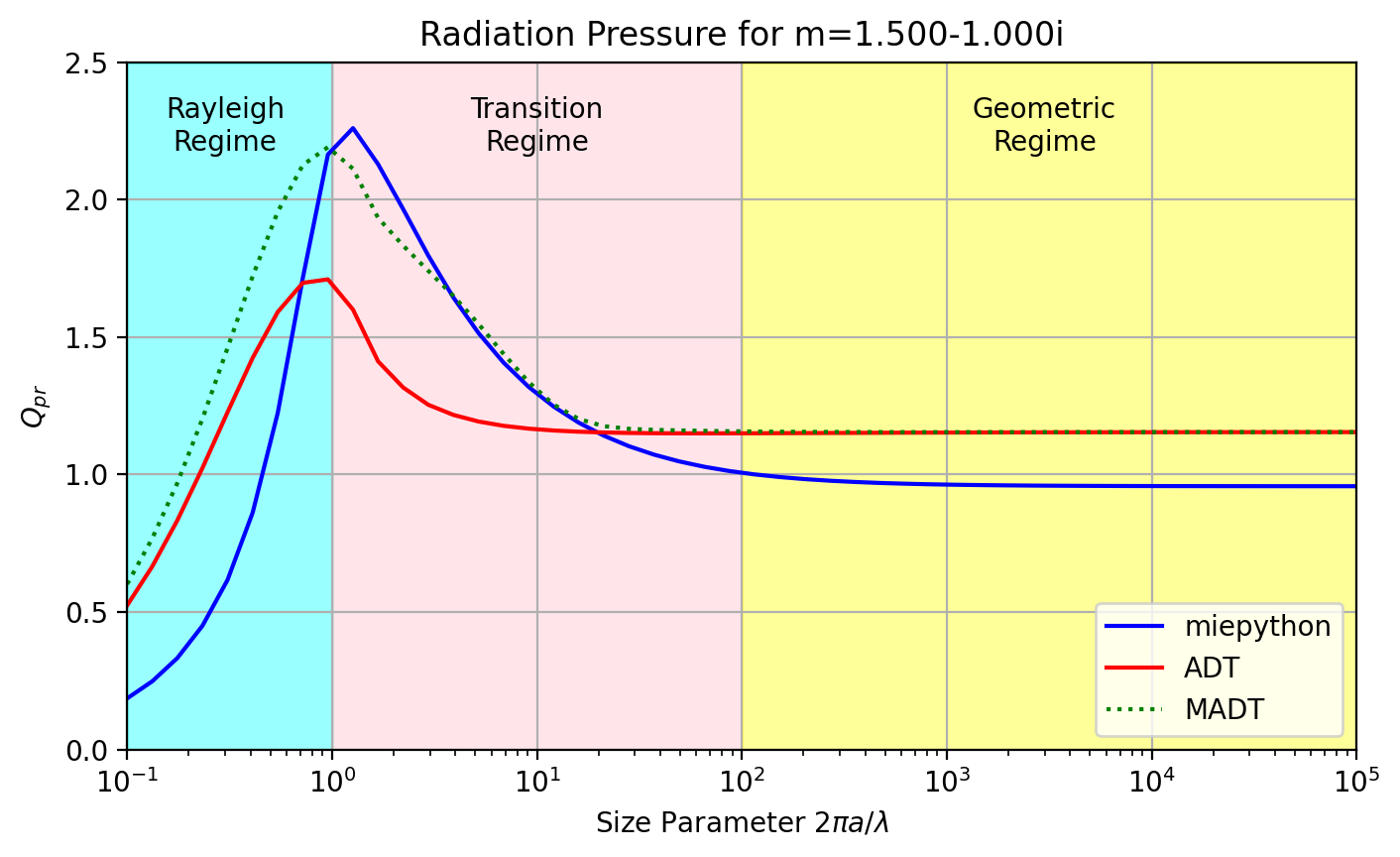

_images/08_large_spheres_34_0.png

[30]:

plt.figure(figsize=(8,4.5))
plt.semilogx(x, g, 'b', label="miepython")

plt.xlabel("Size Parameter")
plt.ylabel("g")
plt.title("Anisotropy for m=%.3f-%.3fi" % (m.real,abs(m.imag)))
add_common_plot_stuff(1.0)

plt.show()

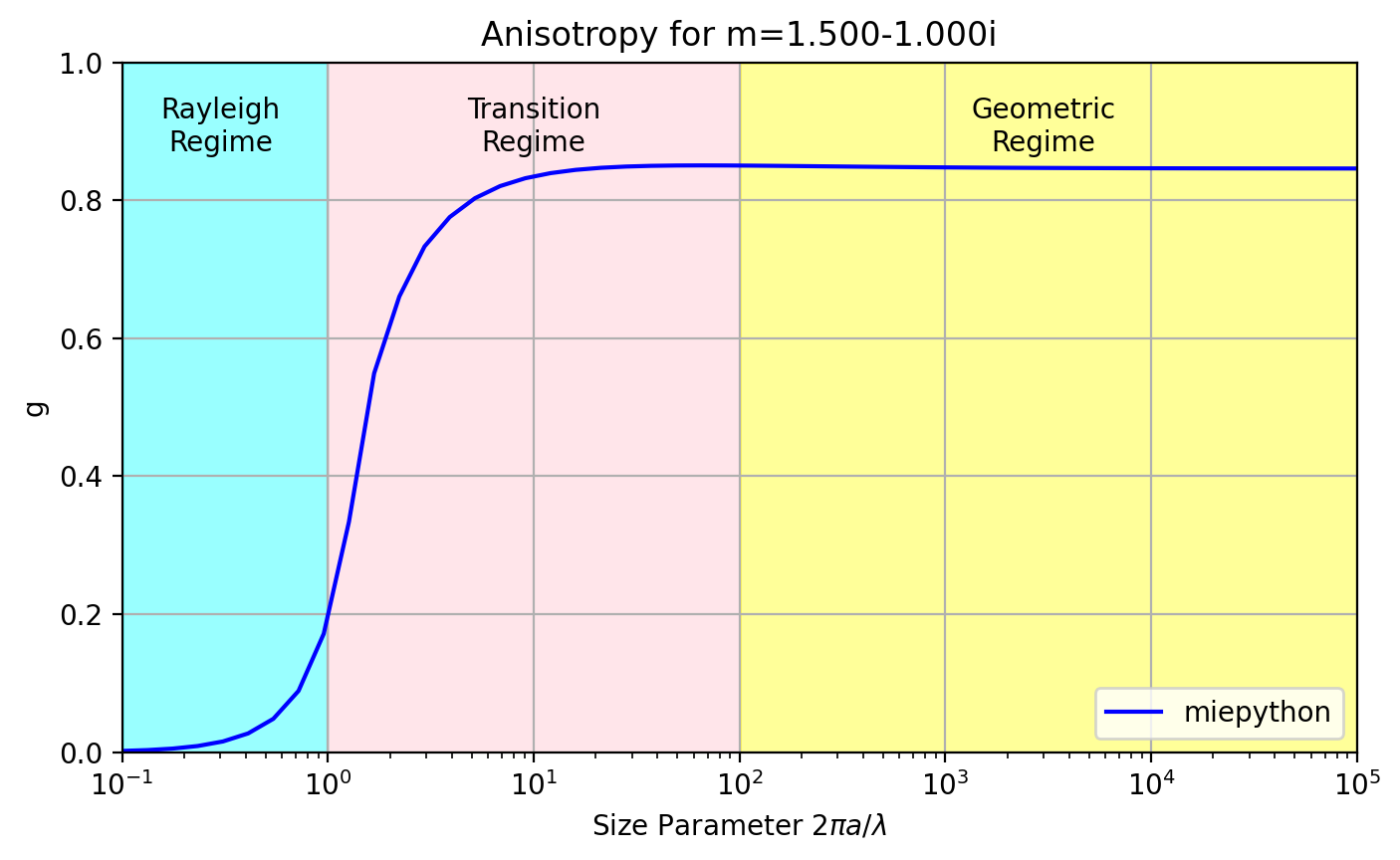

_images/08_large_spheres_35_0.png

[31]:

Qbacks = abs(m-1)**2/abs(m+1)**2
Qback = Qbacks * np.ones_like(x)

plt.figure(figsize=(8,4.5))
plt.semilogx(x, qback, 'b', label="miepython")
plt.semilogx(x, Qback, ':', label="limit")

plt.xlabel("Size Parameter")
plt.ylabel("$Q_{back}$")
plt.title("Backscattering Efficiency for m=%.3f-%.3fi" % (m.real,abs(m.imag)))
add_common_plot_stuff(0.7)

plt.show()

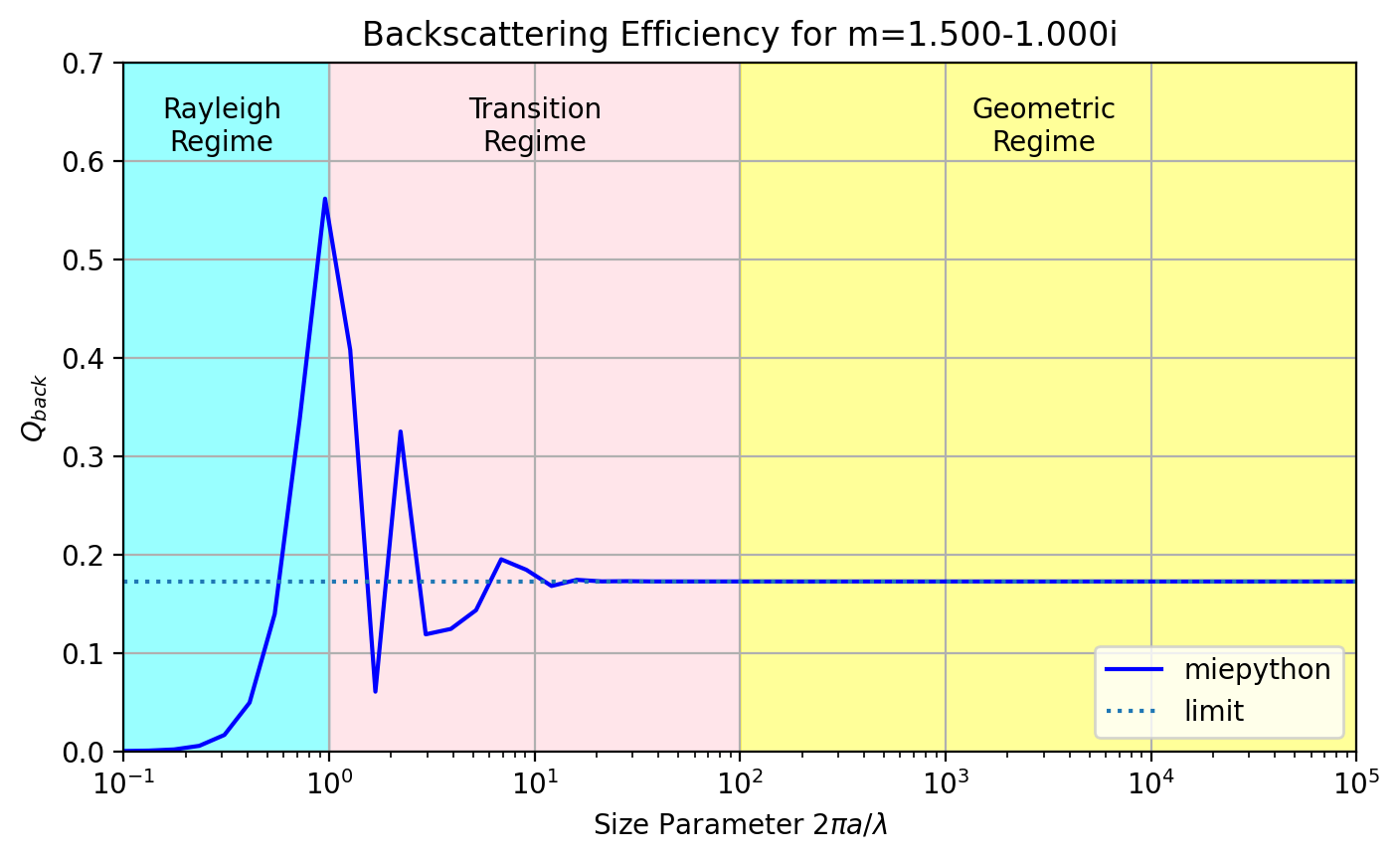

_images/08_large_spheres_36_0.png

[ ]:
